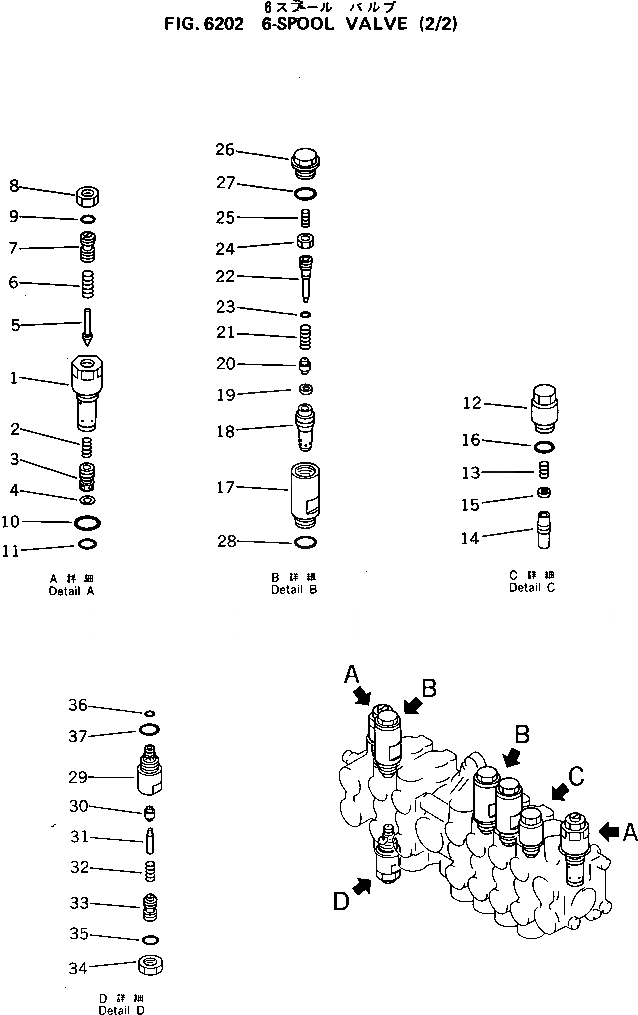

Запчасти Komatsu PC10-5 6-СЕКЦИОНН. УПРАВЛЯЮЩ. КЛАПАН (/) УПРАВЛ-Е РАБОЧИМ ОБОРУДОВАНИЕМ

|1

709-36-11400

VALVE ASS'Y

|1

700-22-51001

VALVE ASS'Y

1

SLEEVE

2

SPRING

3

VALVE

4

700-20-51240

RING

5

POPPET

6

700-20-51350

SPRING

7

700-20-51340

SCREW

8

01583-11408

NUT

9

07000-02011

O-RING

10

700-22-11410

O-RING

11

07002-02434

O-RING

|12

709-30-61100

VALVE ASS'Y

12

709-30-61110

SLEEVE

13

700-20-62170

SPRING

14

709-30-61120

VALVE

15

709-30-61130

SEAL

16

07002-02034

O-RING

|17

709-30-62300

VALVE ASS'Y

17

709-30-62110

SLEEVE

18

709-30-62120

VALVE

19

700-20-71260

SEAL

20

POPPET

21

SPRING

22

PISTON

23

O-RING

24

NUT

25

700-20-62170

SPRING

26

709-30-62150

PLUG

27

07002-12034

O-RING

28

07002-02034

O-RING

|29

709-30-65300

VALVE ASS'Y

29

SLEEVE

30

POPPET

31

PISTON

32

SPRING

33

SCREW

34

NUT

35

O-RING

36

709-32-11840

O-RING

37

07002-02034

O-RING
