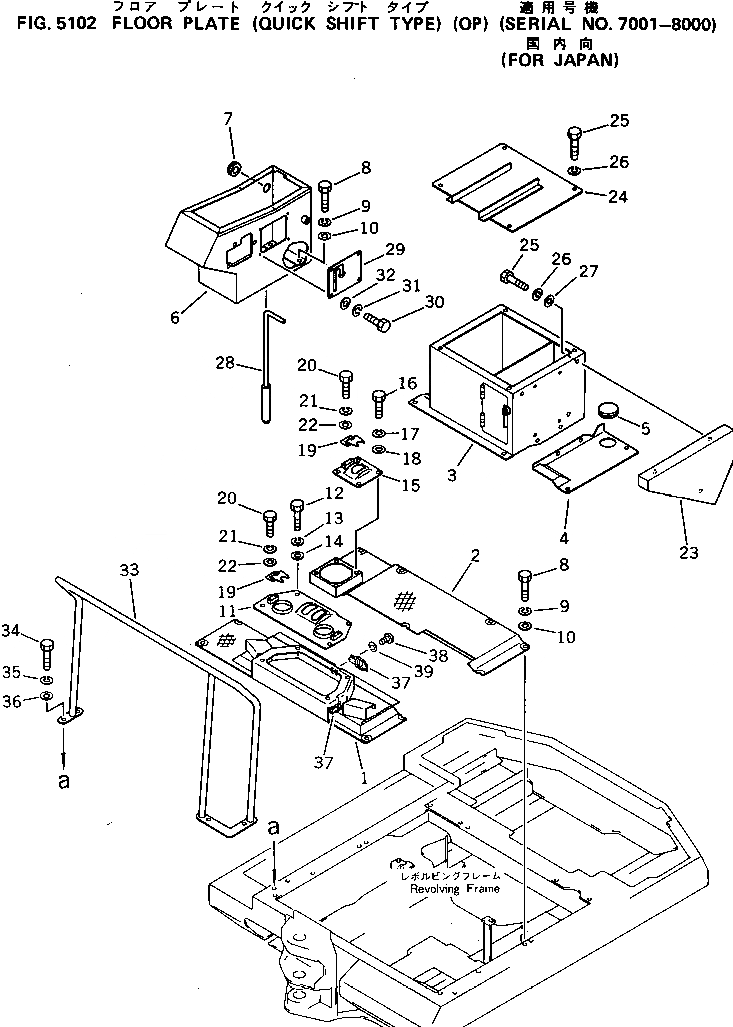

Запчасти Komatsu PC10-5 ПОЛ КАБИНЫ (QUICK SHIFT ТИП)(№7-8) ОСНОВНАЯ РАМА И КАБИНА

1

20N-54-41730

PLATE

2

20N-54-41710

PLATE

3

20N-54-41411

BOX

4

20N-54-41441

COVER

5

09415-05016

CAP

6

20N-54-41511

BOX

7

09415-02512

CAP

8

01010-51025

BOLT

9

01602-21030

WASHER,SPRING

10

01643-31032

WASHER

11

20N-54-41720

COVER

12

01010-51025

BOLT

13

01602-21030

WASHER,SPRING

14

01640-21016

WASHER

15

20N-54-41490

COVER

16

01010-50820

BOLT

17

01602-20825

WASHER,SPRING

18

01640-20816

WASHER

19

20S-43-11421

HINGE

20

01010-50820

BOLT

21

01602-20825

WASHER,SPRING

22

01643-30823

WASHER

23

20N-54-41451

COVER

24

20N-54-41461

PLATE

25

01010-51025

BOLT

26

01602-21030

WASHER,SPRING

27

01643-31032

WASHER

28

20N-54-41521

PIN,SWING LOCK

29

20N-54-41531

PLATE

30

01010-50620

BOLT

31

01602-20619

WASHER,SPRING

32

01643-30623

WASHER

33

20N-54-41480

STAY

34

01010-51025

BOLT

35

01602-21030

WASHER,SPRING

36

01643-31032

WASHER

37

20M-43-33210

CATCH

38

01235-40306

SCREW

39

01601-20307

WASHER,SPRING
