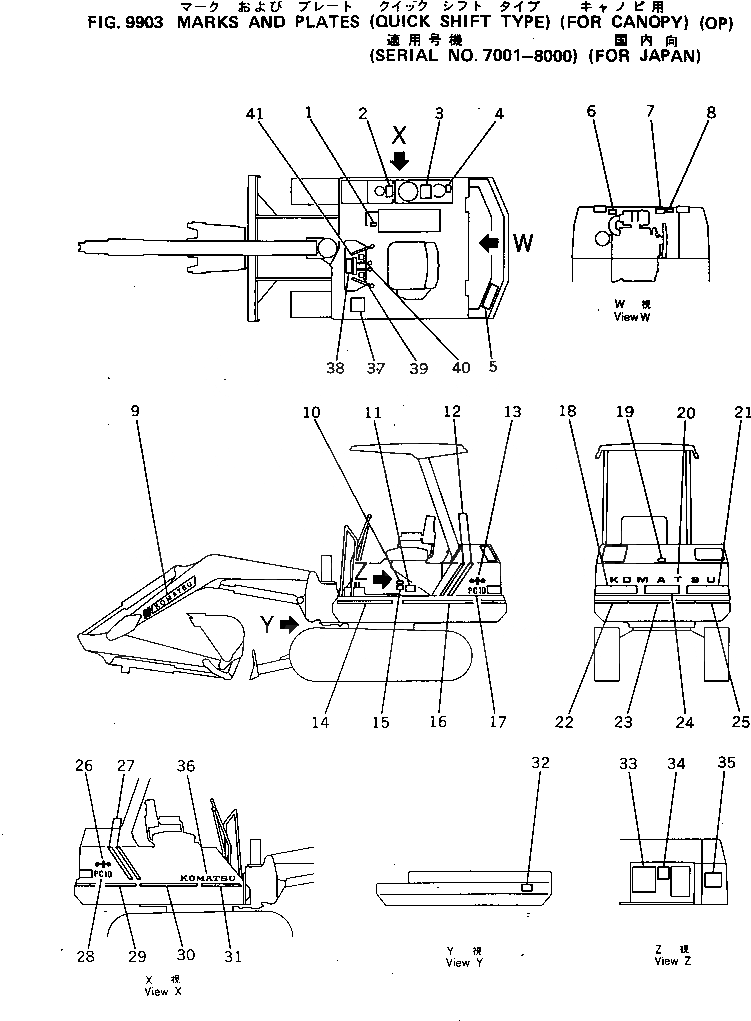

Запчасти Komatsu PC10-5 МАРКИРОВКА (ДЛЯ НАВЕСА) (QUICK SHIFT ТИП)(№7-8) МАРКИРОВКА¤ ИНСТРУМЕНТ И РЕМКОМПЛЕКТЫ

1

20T-98-21130

PLATE¤ OPERATING,SWING

2

20N-98-41180

PLATE¤ INSTRUCTION,FUEL TANK

3

20N-98-41190

PLATE¤ INSTRUCTION,HYDRAULIC OIL

4

09653-00100

PLATE¤ SAFETY,HYDRAULIC TANK CAP

5

20R-98-21130

PLATE¤ SAFETY,KEEP OUT OF TURNING AREA

6

20N-98-21290

PLATE¤ CAUTION,FUEL FILTER

7

09650-01103

PLATE¤ INSTRUCTION,RADIATOR

8

09668-00100

PLATE¤ SAFETY,RADIATOR CAP

9

20N-98-41240

PLATE¤ MARK,KOMATSU

10

09651-00100

PLATE¤ SAFETY,BEFORE OPERATING

11

09132-00100

PLATE¤ SAFETY,WARNING

12

20N-98-41250

PLATE¤ STRIPE

13

09694-50160

PLATE¤ MARK

14

20N-98-41310

PLATE¤ STRIPE

15

09173-00100

PLATE¤ SAFETY,INSPECTION AND MAINTENANCE

16

20N-98-41320

PLATE¤ STRIPE

17

20N-98-41230

PLATE¤ MARK,PC10

18

20N-98-41271

PLATE¤ STRIPE

|18

20N-98-41270

PLATE¤ STRIPE

19

09667-00100

PLATE¤ SAFETY,ENGINE COVER

20

09690-51120

PLATE¤ MARK,KOMATSU

21

20N-98-41271

PLATE¤ STRIPE

|21

20N-98-41290

PLATE¤ STRIPE

22

20N-98-41330

PLATE¤ STRIPE

23

20N-98-41340

PLATE¤ STRIPE

24

20N-98-41280

PLATE¤ STRIPE

24

20N-98-41281

PLATE¤ STRIPE

25

20N-98-41330

PLATE¤ STRIPE

26

09694-50160

PLATE¤ MARK

27

20N-98-41260

PLATE¤ STRIPE

28

20N-98-41230

PLATE¤ MARK,PC10

29

20N-98-41330

PLATE¤ STRIPE

30

20N-98-41350

PLATE¤ STRIPE

31

20N-98-41360

PLATE¤ STRIPE

32

09601-00835

PLATE¤ NAME,(LIMITED SUPPLY)

|32

04418-13060

SCREW

33

20N-98-41121

CHART¤ OIL

34

20N-98-41131

PLATE¤ DATA

35

20N-98-41210

PLATE¤ SAFETY,TRANSPORT

36

09690-40280

PLATE¤ MARK,KOMATSU

37

20N-98-41411

PLATE¤ CAUTION,QUICK SHIFT

38

20M-98-34110

PLATE¤ SAFETY

39

20N-973-2910

PLATE¤ OPERATING

40

20N-973-2920

PLATE¤ OPERATING

41

20N-973-2930

PLATE¤ CAUTION
