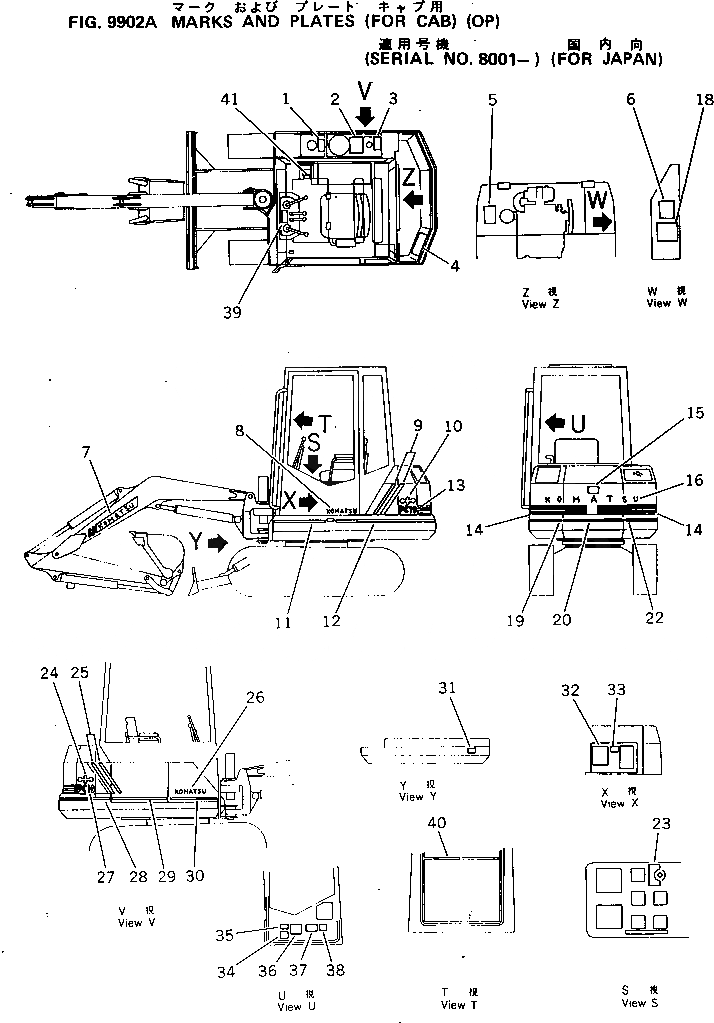

Запчасти Komatsu PC10-5 МАРКИРОВКА (ДЛЯ КАБИНЫ)(№8-) МАРКИРОВКА¤ ИНСТРУМЕНТ И РЕМКОМПЛЕКТЫ

1

20N-98-41180

PLATE¤ INSTRUCTION,FUEL TANK

2

20N-98-41190

PLATE¤ INSTRUCTION,HYDRAULIC OIL

3

09653-00100

PLATE¤ SAFETY,HYDRAULIC TANK CAP

4

20R-98-21130

PLATE¤ SAFETY,KEEP OUT OF TURNING AREA

5

20N-98-21290

PLATE¤ CAUTION,FUEL FILTER

6

09650-01103

PLATE¤ INSTRUCTION,RADIATOR

7

20N-98-41240

PLATE¤ MARK,KOMATSU

8

09690-40280

PLATE¤ MARK,KOMATSU

9

20N-98-41250

PLATE¤ STRIPE

10

09694-50160

PLATE¤ MARK

11

20N-98-41315

PLATE¤ STRIPE

12

20N-98-41320

PLATE¤ STRIPE

13

20N-98-41230

PLATE¤ MARK,PC10

14

20N-98-41275

PLATE¤ STRIPE

15

09667-00100

PLATE¤ SAFETY,ENGINE COVER

16

09690-51120

PLATE¤ MARK,KOMATSU

18

09668-00100

PLATE¤ SAFETY,RADIATOR CAP

19

20N-98-41330

PLATE¤ STRIPE

20

20N-98-41340

PLATE¤ STRIPE

22

20N-98-41330

PLATE¤ STRIPE

23

09683-01060

PLATE¤ OPERATING,STARTING SWITCH

24

09694-50160

PLATE¤ MARK

25

20N-98-41260

PLATE¤ STRIPE

26

09690-40280

PLATE¤ MARK,KOMATSU

27

20N-98-41230

PLATE¤ MARK,PC10

28

20N-98-41330

PLATE¤ STRIPE

29

20N-98-41350

PLATE¤ STRIPE

30

20N-98-41365

PLATE¤ STRIPE

31

09601-00835

PLATE¤ NAME,(LIMITED SUPPLY)

|31

04418-13060

SCREW

32

20N-98-41121

CHART¤ OIL

33

20N-98-41131

PLATE¤ DATA

34

09173-00100

PLATE¤ SAFETY,INSPECTION AND MAINTENANCE

35

09651-00100

PLATE¤ SAFETY,BEFORE OPERATING

36

20N-98-41210

PLATE¤ SAFETY,TRANSPORT

37

09132-00100

PLATE¤ SAFETY,LEAVING SEAT

38

20T-98-21210

PLATE¤ OPERATING,DOOR LOCK

39

20N-98-31110

PLATE¤ OPERATING,WORK EQUIPMENT

40

20T-98-21230

PLATE¤ CAUTION,WINDOW

41

20T-98-21130

PLATE¤ OPERATING,SWING
