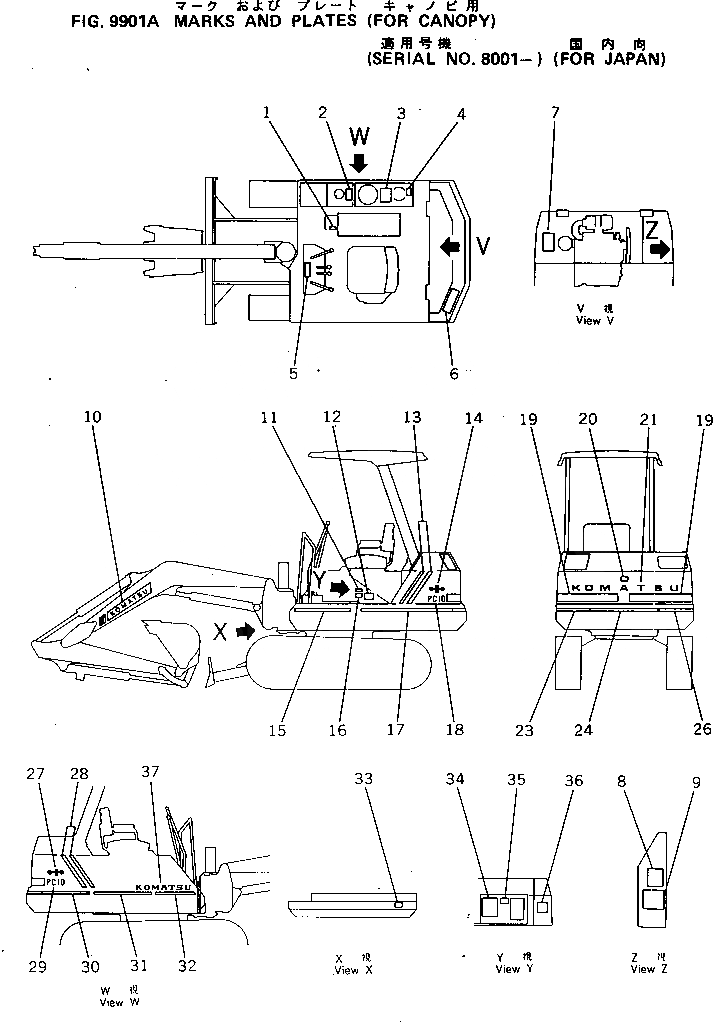

Запчасти Komatsu PC10-5 МАРКИРОВКА (ДЛЯ НАВЕСА)(№8-) МАРКИРОВКА¤ ИНСТРУМЕНТ И РЕМКОМПЛЕКТЫ

1

20T-98-21130

PLATE¤ OPERATING,SWING

2

20N-98-41180

PLATE¤ INSTRUCTION,FUEL TANK

3

20N-98-41190

PLATE¤ INSTRUCTION,HYDRAULIC OIL

4

09653-00100

PLATE¤ SAFETY,HYDRAULIC TANK CAP

5

20N-98-31110

PLATE¤ OPERATING

6

20R-98-21130

PLATE¤ SAFETY,KEEP OUT OF TURNING AREA

7

20N-98-21290

PLATE¤ CAUTION,FUEL FILTER

8

09650-01103

PLATE¤ INSTRUCTION,RADIATOR

9

09668-00100

PLATE¤ SAFETY,RADIATOR CAP

10

20N-98-41240

PLATE¤ MARK,KOMATSU

11

09651-00100

PLATE¤ SAFETY,BEFORE OPERATING

12

09132-00100

PLATE¤ SAFETY,WARNING

13

20N-98-41250

PLATE¤ STRIPE

14

09694-50160

PLATE¤ MARK

15

20N-98-41315

PLATE¤ STRIPE

16

09173-00100

PLATE¤ SAFETY,INSPECTION AND MAINTENANCE

17

20N-98-41320

PLATE¤ STRIPE

18

20N-98-41230

PLATE¤ MARK,PC10

19

20N-98-41275

PLATE¤ STRIPE

20

09667-00100

PLATE¤ SAFETY,ENGINE COVER

21

09690-51120

PLATE¤ MARK,KOMATSU

23

20N-98-41330

PLATE¤ STRIPE

24

20N-98-41340

PLATE¤ STRIPE

26

20N-98-41330

PLATE¤ STRIPE

27

09694-50160

PLATE¤ MARK

28

20N-98-41260

PLATE¤ STRIPE

29

20N-98-41230

PLATE¤ MARK,PC10

30

20N-98-41330

PLATE¤ STRIPE

31

20N-98-41350

PLATE¤ STRIPE

32

20N-98-41365

PLATE¤ STRIPE

33

09601-00835

PLATE¤ NAME,(LIMITED SUPPLY)

|33

04418-13060

SCREW

34

20N-98-41121

CHART¤ OIL

35

20N-98-41131

PLATE¤ DATA

36

20N-98-41210

PLATE¤ SAFETY,TRANSPORT

37

09690-40280

PLATE¤ MARK,KOMATSU
