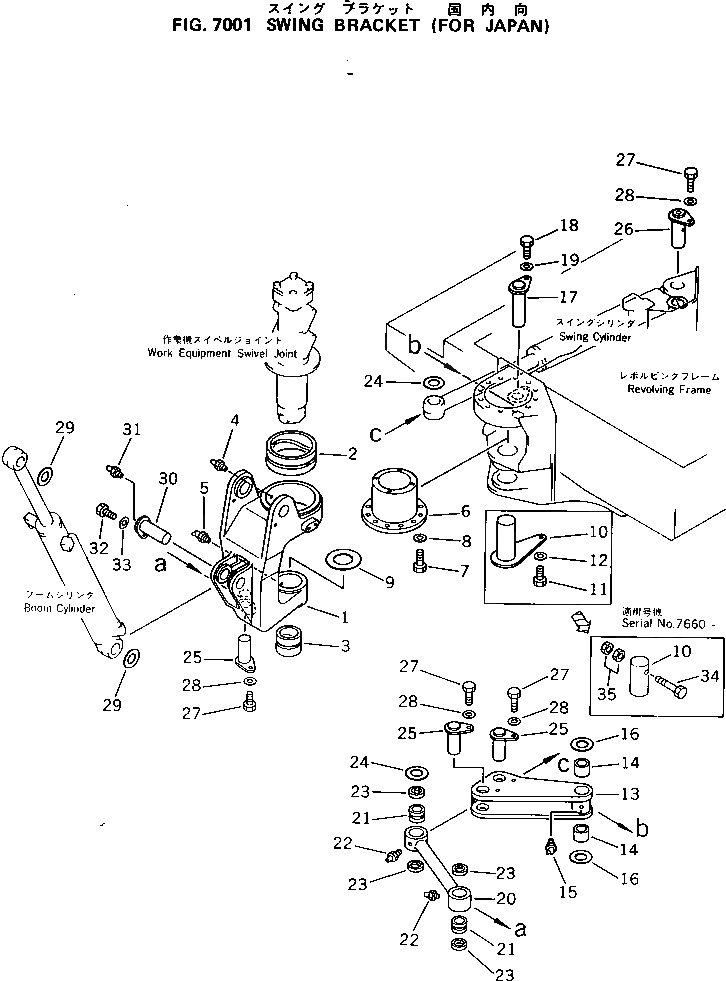

Запчасти Komatsu PC10-5 ПОВОРОТН. БЛОК РАБОЧЕЕ ОБОРУДОВАНИЕ

1

20N-70-44111

BRACKET

2

20N-70-44120

BUSHING

3

20N-70-44130

BUSHING

4

07020-00000

FITTING,GREASE

5

07020-00675

FITTING,GREASE

6

20N-70-44141

SHAFT

7

01010-51235

BOLT

8

01643-31232

WASHER

9

20N-70-44170

SPACER¤ 0.5MM

|9

20N-70-44160

SPACER¤ 1.0MM

10

20N-70-44151

PIN

|10

20N-70-44150

PIN

11

01010-51225

BOLT

12

01643-31232

WASHER

13

20N-70-44210

LINK

14

07143-10304

BUSHING

15

07020-00675

FITTING,GREASE

16

20N-70-41270

SPACER¤ 1.0MM

|16

20R-70-11270

SPACER¤ 1.0MM

17

20N-70-44230

PIN

18

01010-51225

BOLT

19

01643-31232

WASHER

20

20N-70-44220

ROD

21

07144-10304

BUSHING

22

07020-00000

FITTING,GREASE

23

07145-00035

SEAL,DUST

24

20N-70-41270

SPACER¤ 1.0MM

|24

20R-70-11270

SPACER¤ 1.0MM

25

20N-70-44250

PIN

26

20N-70-44240

PIN

27

01010-51225

BOLT

28

01643-31232

WASHER

29

20N-70-41270

SPACER¤ 1.0MM

|29

20R-70-11270

SPACER¤ 1.0MM

30

20N-70-11230

PIN

31

07020-00000

FITTING,GREASE

32

01010-51225

BOLT

33

01643-31232

WASHER

34

01011-51430

BOLT

35

01580-11411

NUT
