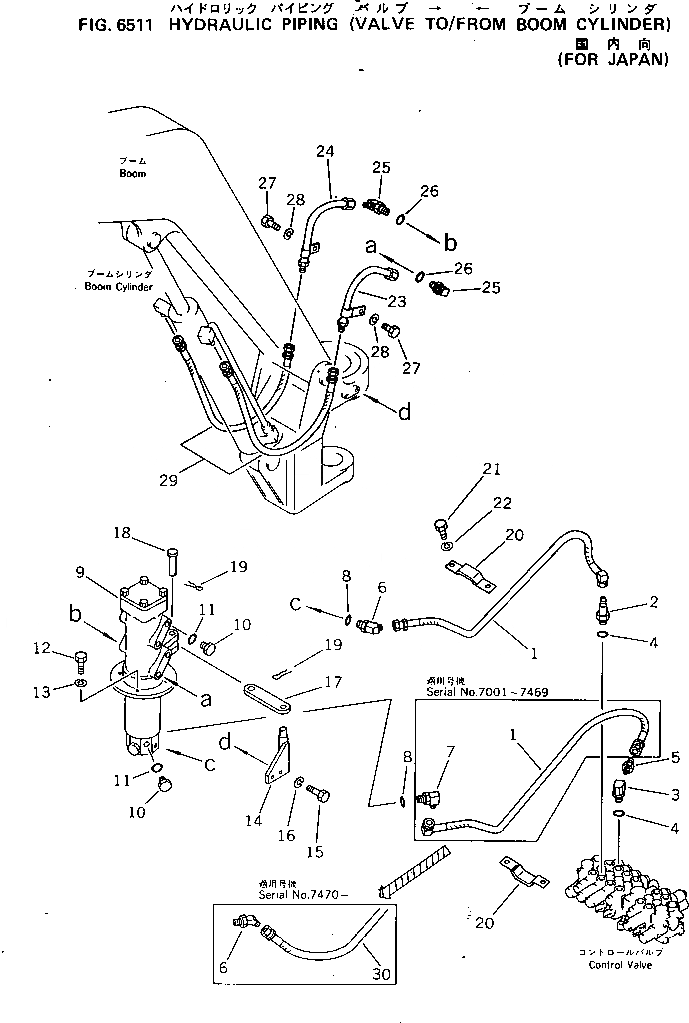

Запчасти Komatsu PC10-5 ГИДРОЛИНИЯ (КЛАПАН TO/FROM ЦИЛИНДР СТРЕЛЫ) УПРАВЛ-Е РАБОЧИМ ОБОРУДОВАНИЕМ

1

20N-62-42230

HOSE

|1

20N-62-42510

HOSE

|1

20N-62-42510

HOSE

2

20N-62-31270

NIPPLE

|2

20N-62-42490

NIPPLE

3

20N-62-42610

ELBOW

4

07002-11823

O-RING

5

20N-62-41270

CONNECTOR

6

20N-62-32470

ELBOW

|6

20N-62-32470

ELBOW

7

20N-62-31280

ELBOW

8

07002-11823

O-RING

9

703-07-13100

SWIVEL JOINT ASS'Y

10

07040-11812

PLUG

11

07002-11823

O-RING

12

01010-51025

BOLT

13

01602-21030

WASHER,SPRING

14

20N-60-41250

BRACKET

15

01010-51030

BOLT

16

01602-21030

WASHER,SPRING

17

20S-60-21420

LINK

18

201-60-11230

PIN

19

04052-01664

PIN,SNAP

20

20N-62-42570

CLAMP

21

01010-51025

BOLT

22

01602-21030

WASHER,SPRING

23

20N-62-49430

TUBE

24

20N-62-49440

TUBE

25

20N-62-31280

ELBOW

26

07002-11823

O-RING

27

01010-51020

BOLT

28

01602-21030

WASHER,SPRING

29

20N-62-43240

HOSE

30

20N-62-33170

HOSE
