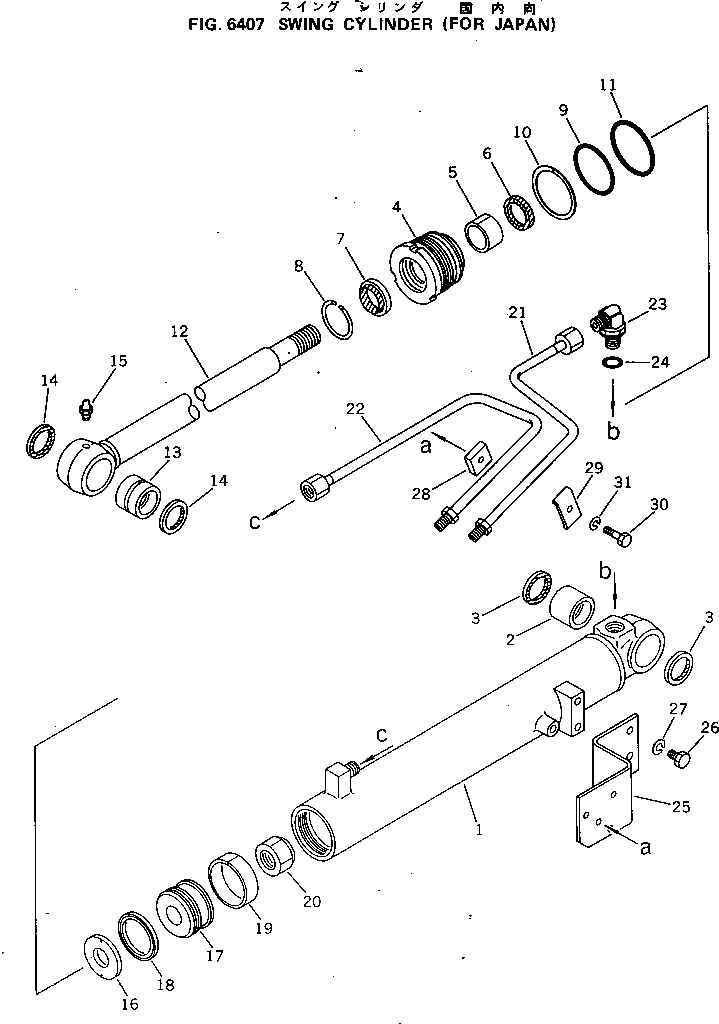

Запчасти Komatsu PC10-5 ПОВОРОТН. ЦИЛИНДР УПРАВЛ-Е РАБОЧИМ ОБОРУДОВАНИЕМ

|1

20N-63-86701

CYLINDER ASS'Y

1

20N-63-86741

CYLINDER

2

07143-10304

BUSHING

3

07145-00035

SEAL,DUST

4

707-29-70920

HEAD,CYLINDER

5

07177-03525

BUSHING

6

707-51-35210

PACKING,ROD

7

175-63-75190

SEAL,DUST

8

07179-00054

RING,SNAP

9

07000-12065

O-RING

10

07001-02065

RING,BACK-UP

11

07000-12070

O-RING

12

20N-63-86721

ROD,PISTON

13

07144-10304

BUSHING

14

07145-00035

SEAL,DUST

15

07020-00000

FITTING,GREASE

16

10E-63-66280

RETAINER

17

707-36-70120

PISTON

18

07161-10070

RING,PISTON

19

07155-00720

RING,WEAR

20

07165-12729

NUT

21

20N-63-86781

TUBE

22

20N-63-86771

TUBE

23

07235-10315

ELBOW

24

07002-12034

O-RING

25

707-88-97161

PLATE

26

01010-51016

BOLT

27

01602-21030

WASHER,SPRING

28

707-88-97170

PLATE

29

707-88-99590

CLIP

30

01010-50830

BOLT

31

01602-20825

WASHER,SPRING
