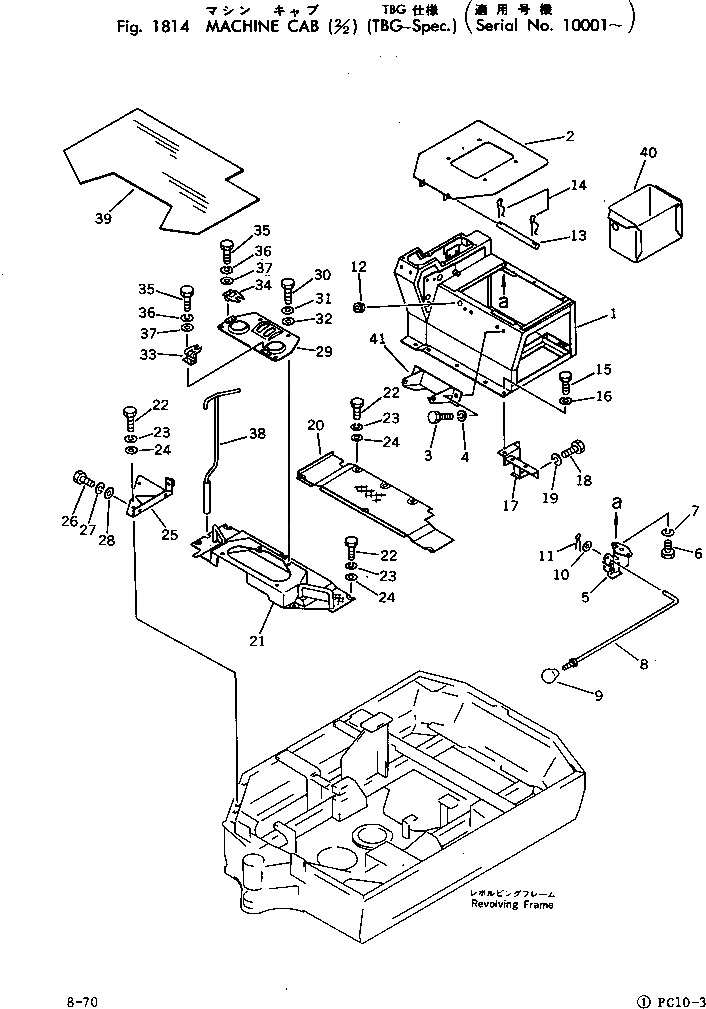

Запчасти Komatsu PC10-3 КАБИНА (/) (СПЕЦ-Я TBG)(№-) ОПЦИОННЫЕ КОМПОНЕНТЫ

1

20N-54-39210

BOX

2

20N-54-39370

PLATE

3

01010-51230

BOLT

4

01602-21236

WASHER,SPRING

5

20N-54-21380

SEAT LIFTER ASS'Y

6

01010-51016

BOLT

7

01602-21030

WASHER,SPRING

8

20N-54-23220

ROD

9

09304-00835

KNOB

10

01641-20608

WASHER

11

04050-12010

PIN,COTTER

12

08037-01008

GROMMET

13

20N-54-39380

PIN

14

04052-01038

PIN,SNAP

15

01010-51025

BOLT

16

01602-21030

WASHER,SPRING

17

20N-54-33120

BRACKET

18

01010-51025

BOLT

19

01602-21030

WASHER,SPRING

20

20N-54-39310

PLATE,FLOOR

21

20N-54-39320

PLATE,FLOOR

22

01010-51025

BOLT

23

01602-21030

WASHER,SPRING

24

01643-31032

WASHER

25

20N-54-39330

PLATE,FLOOR

26

01010-51020

BOLT

27

01602-21030

WASHER,SPRING

28

01643-31032

WASHER

29

20N-54-39260

COVER

30

113-B44-1230

BOLT

31

01602-21032

WASHER,SPRING

32

01640-21016

WASHER

33

20S-43-15140

HINGE

34

20S-43-11421

HINGE

35

01010-50820

BOLT

36

01602-20825

WASHER,SPRING

37

01643-30823

WASHER

38

20N-54-39410

PIN,SWING LOCK

39

20N-54-39460

SHEET

40

20N-54-39470

BOX,TOOL

41

20N-54-39360

BRACKET
