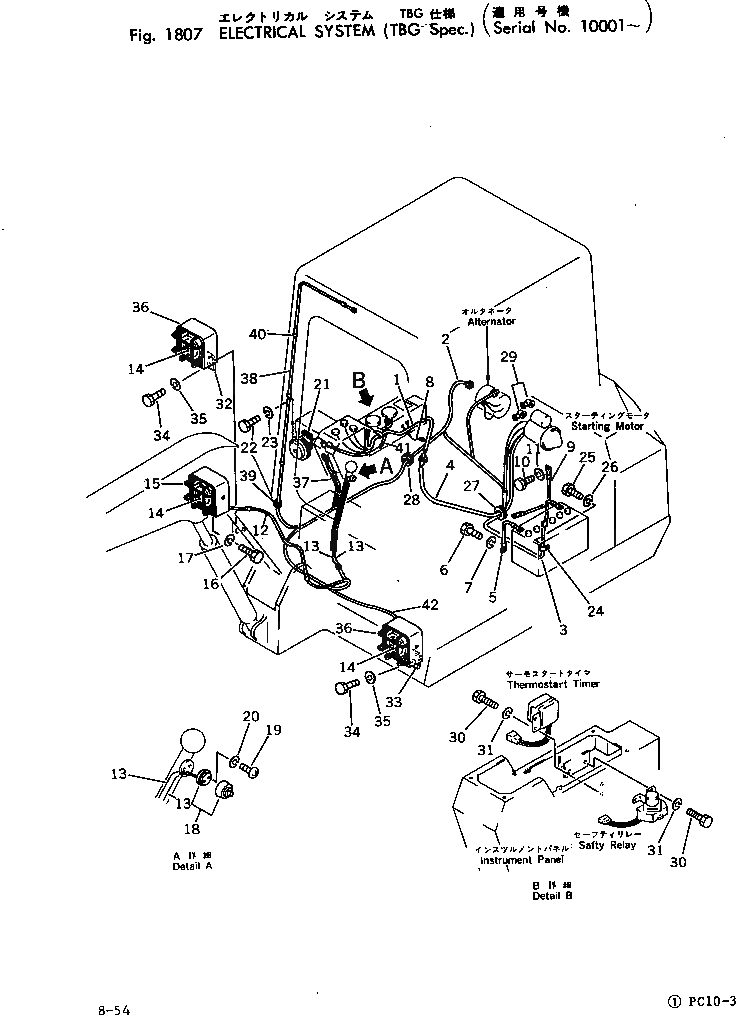

Запчасти Komatsu PC10-3 ЭЛЕКТРИКА (СПЕЦ-Я TBG)(№-) ОПЦИОННЫЕ КОМПОНЕНТЫ

1

20N-06-22110

WIRE ASS'Y

2

20N-06-22120

WIRE ASS'Y

3

20N-06-32110

WIRE ASS'Y

4

20N-06-32130

TUBE

5

201-06-11340

WIRE

6

01010-51020

BOLT

7

01602-21030

WASHER,SPRING

8

20N-06-22130

WIRE ASS'Y

9

201-06-21150

WIRE

10

01010-51020

BOLT

11

01602-21030

WASHER,SPRING

12

20N-06-22150

WIRE ASS'Y

13

20N-06-32120

WIRE

14

08125-01200

LAMP ASS'Y

14

08107-01260

BULB, 60W

14

08125-00006

LENS

15

20S-06-14110

COVER

16

01010-51225

BOLT

17

01602-21236

WASHER,SPRING

18

20N-06-11230

SWITCH,HORN

19

01220-40316

SCREW

20

01601-20307

WASHER,SPRING

21

08160-41200

HORN

22

01010-50816

BOLT

23

01602-20825

WASHER,SPRING

24

08036-02514

CLIP

25

01010-51020

BOLT

26

01602-21030

WASHER,SPRING

27

08037-05016

GROMMET

28

08037-01610

GROMMET

29

08038-00519

CAP,TERMINAL

30

01010-50610

BOLT

31

01602-20619

WASHER,SPRING

32

20N-06-39210

BRACKET

33

20N-06-39220

BRACKET

34

01010-51225

BOLT

35

01602-21236

WASHER,SPRING

36

20S-06-14110

COVER

37

20N-06-39110

WIRE ASS'Y

38

20N-06-39120

WIRE ASS'Y

39

08037-01008

GROMMET

40

FF8715-12810

CLAMP

41

20N-06-39150

WIRE ASS'Y

42

20N-06-39160

WIRE
