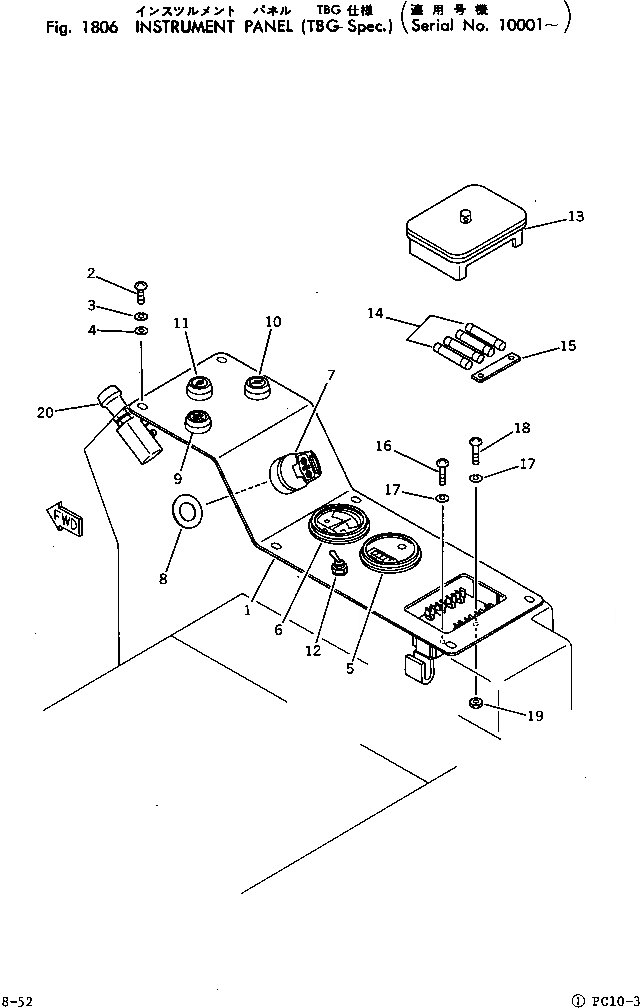

Запчасти Komatsu PC10-3 ПАНЕЛЬ ПРИБОРОВ (СПЕЦ-Я TBG)(№-) ОПЦИОННЫЕ КОМПОНЕНТЫ

1

20N-06-31110

PANEL

2

01220-40612

SCREW

3

01602-20619

WASHER,SPRING

4

01640-20610

WASHER

5

08687-21200

METER,SERVICE

6

362-06-11140

GAUGE,WATER TEMPERATURE

7

201-06-21510

SWITCH,STARTING

8

205-26-91140

SPACER

9

10E-06-22140

LAMP,OIL PRESSURE

10

10E-06-22150

LAMP,BATTERY CHARGE

11

20S-06-14130

LAMP,ENGINE THERMOSTART

12

20N-06-11120

SWITCH,LAMP

13

20R-06-22210

BOX,FUSE

14

08040-02000

FUSE, 20A

15

150-06-14290

TERMINAL

16

01220-40520

SCREW

17

01601-20513

WASHER,SPRING

18

01220-40525

SCREW

19

01580-10504

NUT

20

FF8710-21220

SWITCH,WORK LAMP
