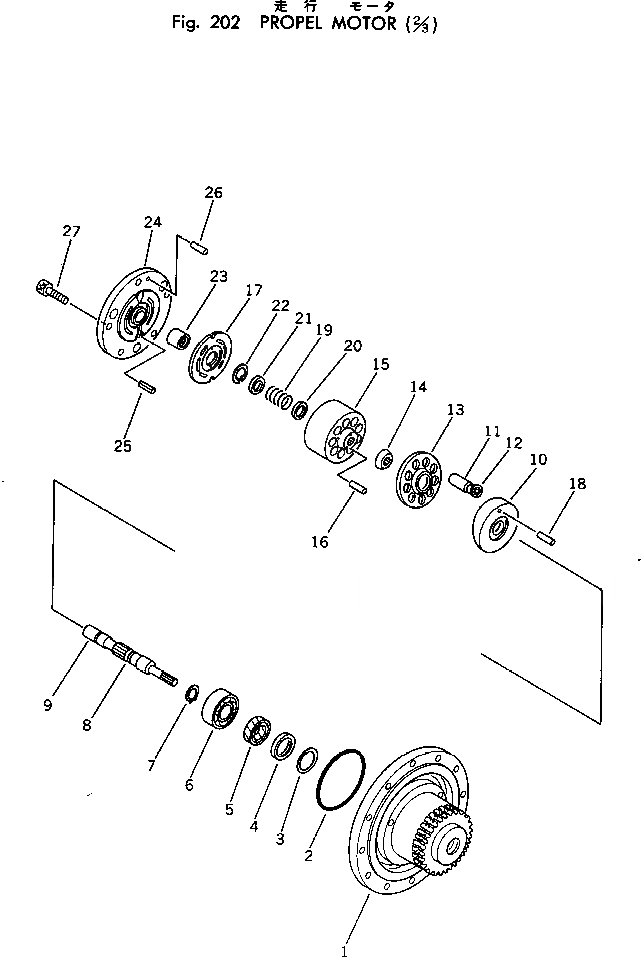

Запчасти Komatsu PC10-3 PКАНАТL МОТОР (/) ХОД И КОНЕЧНАЯ ПЕРЕДАЧА

|$0

20N-60-31200

TRAVEL MOTOR ASS'Y

1

20N-60-31380

BODY

2

07000-12090

O-RING

3

20N-60-31480

RING,SUPPORT

4

20N-60-31540

RING,BACK-UP

5

20N-60-31780

SEAL

6

06000-06204

BEARING

7

04064-02012

RING,SNAP

|$8

20N-60-31600

SHAFT SUB ASS'Y

8

SHAFT

9

20N-60-31790

RACE,INNER

|$11

20N-60-31700

CYLINDER BARREL A.

10

PLATE,SWASH

11

PISTON

12

SHOE

13

HOLDER,BARREL

14

HOLDER,CYLINDER

15

BARREL

16

20N-60-31520

PIN

17

PLATE,VALVE

18

04022-00816

PIN

19

20N-60-31530

SPRING

20

20N-60-31510

RETAINER

21

20N-60-31490

COLLAR

22

04065-02812

RING,SNAP

23

20N-60-31810

BEARING,NEEDLE

24

20N-60-31370

BODY

25

04025-00516

PIN,SPRING

26

04020-00616

PIN

27

01252-41025

BOLT
