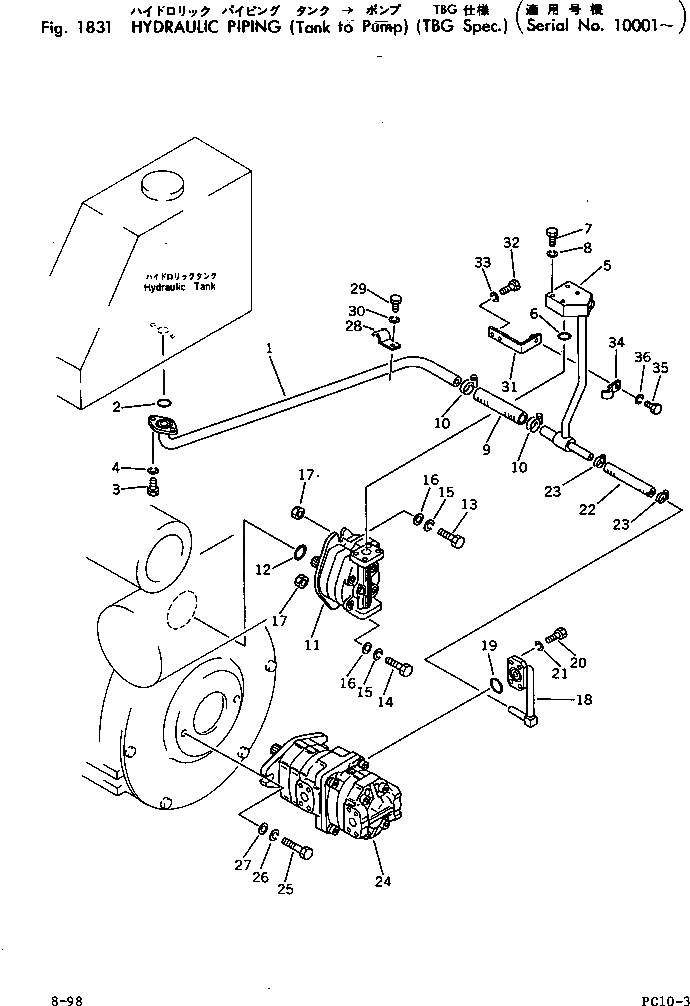

Запчасти Komatsu PC10-3 ГИДРОЛИНИЯ (ИЗ БАКА В НАСОС) (СПЕЦ-Я TBG)(№-) ОПЦИОННЫЕ КОМПОНЕНТЫ

1

20N-62-21110

TUBE

2

07000-03030

O-RING

3

01010-51030

BOLT

4

01602-21030

WASHER,SPRING

5

20N-62-21170

TUBE

6

07000-03032

O-RING

7

07372-21045

BOLT

8

01602-21030

WASHER,SPRING

9

07260-23218

HOSE

10

07280-04726

CLAMP

11

705-22-20020

PUMP ASS'Y

12

07000-02085

O-RING

13

01010-51055

BOLT

14

01010-51045

BOLT

15

01602-21030

WASHER,SPRING

16

01643-31032

WASHER

17

01580-11008

NUT

18

20N-62-21130

TUBE

19

07000-03048

O-RING

20

01010-51235

BOLT

21

01602-21236

WASHER,SPRING

22

07260-22618

HOSE

23

07280-03826

CLAMP

24

705-52-10060

TANDEM PUMP ASS'Y

25

01010-51030

BOLT

26

01602-21030

WASHER,SPRING

27

01643-31032

WASHER

28

20N-62-21190

CLAMP

29

01010-51030

BOLT

30

01602-21030

WASHER,SPRING

31

20N-62-39280

PLATE

32

01010-51020

BOLT

33

01602-21030

WASHER,SPRING

34

20N-62-39290

CLAMP

35

01010-51025

BOLT

36

01602-21030

WASHER,SPRING
