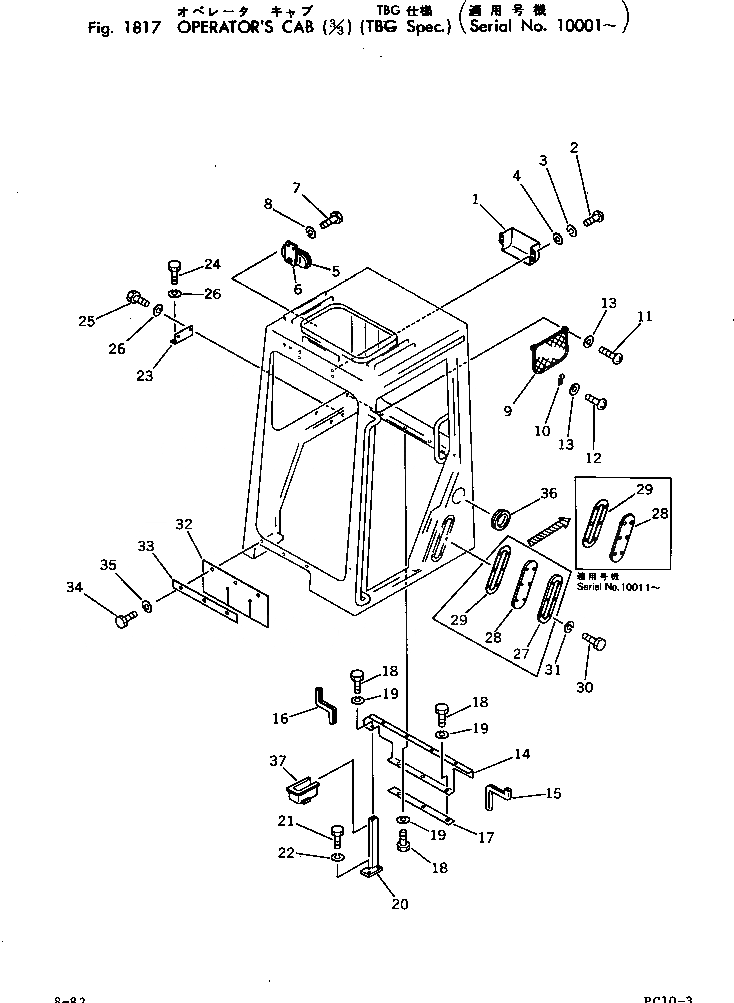

Запчасти Komatsu PC10-3 КАБИНА (/) (СПЕЦ-Я TBG)(№-) ОПЦИОННЫЕ КОМПОНЕНТЫ

1

20T-54-27780

COVER

2

01220-40612

SCREW

3

01602-20619

WASHER,SPRING

4

01641-20608

WASHER

5

20B-06-21230

MIRROR,BACK

6

20T-54-27540

BRACKET

7

01010-50820

BOLT

8

01602-20825

WASHER,SPRING

9

565-54-13850

POCKET

10

565-54-13860

SADDLE

11

01220-40416

SCREW

12

01220-40408

SCREW

13

01641-20405

WASHER

14

20N-54-39710

PLATE

15

20N-54-39720

SEAL

16

20N-54-39730

SEAL

17

20N-54-39740

PLATE

18

01010-51020

BOLT

19

01602-21030

WASHER,SPRING

20

20N-54-39760

BRACKET

21

01010-51230

BOLT

22

01602-21236

WASHER,SPRING

23

20N-54-39770

BRACKET

24

01010-51030

BOLT

25

01010-51016

BOLT

26

01602-21030

WASHER,SPRING

27

20N-54-39690

COVER

28

20N-54-39671

PLATE

28

20N-54-39670

PLATE

29

20N-54-39681

SEAT

29

20N-54-39680

SEAT

30

01220-40516

SCREW

30

01010-50616

BOLT

31

01641-20508

WASHER

31

01640-20610

WASHER

32

20N-54-39641

COVER

32

20N-54-39640

COVER

33

20N-54-39651

PLATE

33

20N-54-39650

PLATE

34

01010-50616

BOLT

35

01640-20610

WASHER

36

20N-54-39630

SEAL

37

20N-54-25210

SEAL
