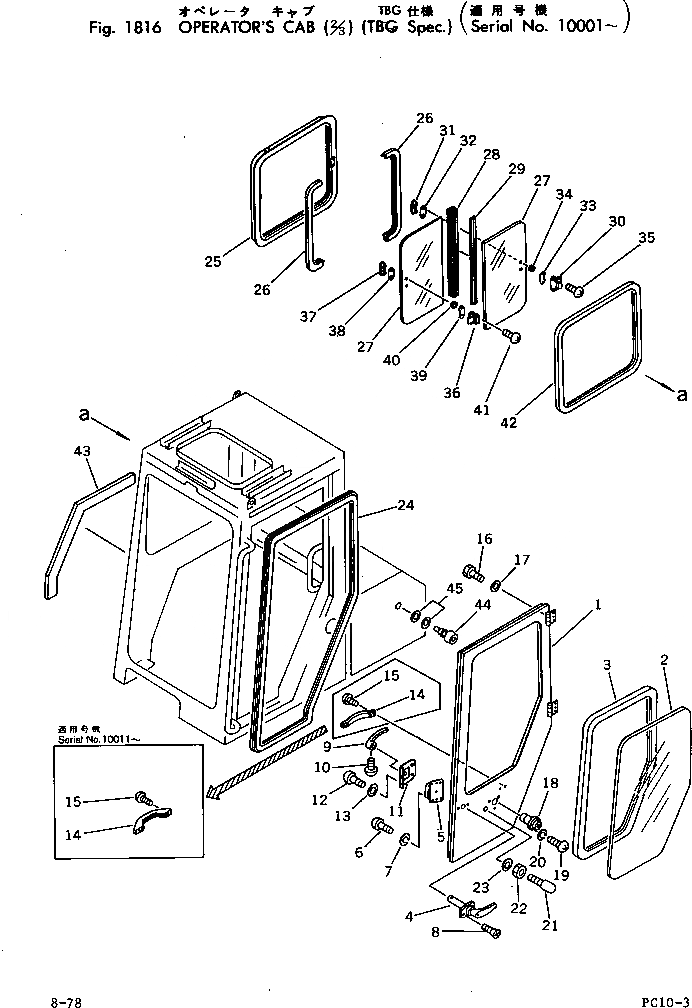

Запчасти Komatsu PC10-3 КАБИНА (/) (СПЕЦ-Я TBG)(№-) ОПЦИОННЫЕ КОМПОНЕНТЫ

1

20N-54-39910

DOOR

2

20N-54-39930

GLASS

3

09410-40285

STRIP,WEATHER

4

20T-54-25310

HANDLE

5

20T-54-25320

LOCK

6

01220-40612

SCREW

7

01602-20619

WASHER,SPRING

8

01225-40412

SCREW

9

09454-00011

HANDLE

10

01220-40408

SCREW

11

20N-54-39960

COVER

12

01220-40512

SCREW

12

01220-40412

SCREW

13

01641-20508

WASHER

13

01641-20405

WASHER

14

20N-54-39980

GRIP

14

565-54-13880

GRIP

15

01220-40512

SCREW

15

01224-40520

SCREW

16

01010-51025

BOLT

17

01643-31032

WASHER

18

20T-54-25340

CATCH

19

01220-40516

SCREW

20

01601-20513

WASHER,SPRING

21

21K-54-11310

STOPPER

22

01580-11210

NUT

23

01642-21216

WASHER

24

20N-54-39620

SEAL

|$28

20N-54-39800

SASH ASS'Y

25

SASH

26

20N-54-39830

STRIP,WEATHER

27

20N-54-39840

GLASS

28

20N-54-39850

SASH

29

20N-54-39860

STRIP,WEATHER

30

205-54-53160

LOCK

31

205-54-53170

RETAINER

32

205-54-53250

PACKING

33

205-54-53260

PACKING

34

205-54-53270

PACKING

35

01225-40408

SCREW

36

205-54-53150

LOCK

37

205-54-53170

RETAINER

38

205-54-53250

PACKING

39

205-54-53260

PACKING

40

205-54-53270

PACKING

41

01225-40408

SCREW

42

09410-40250

STRIP,WEATHER

43

20N-54-39610

SEAL

44

20T-54-25351

CATCH

45

20N-54-39990

SHIM
