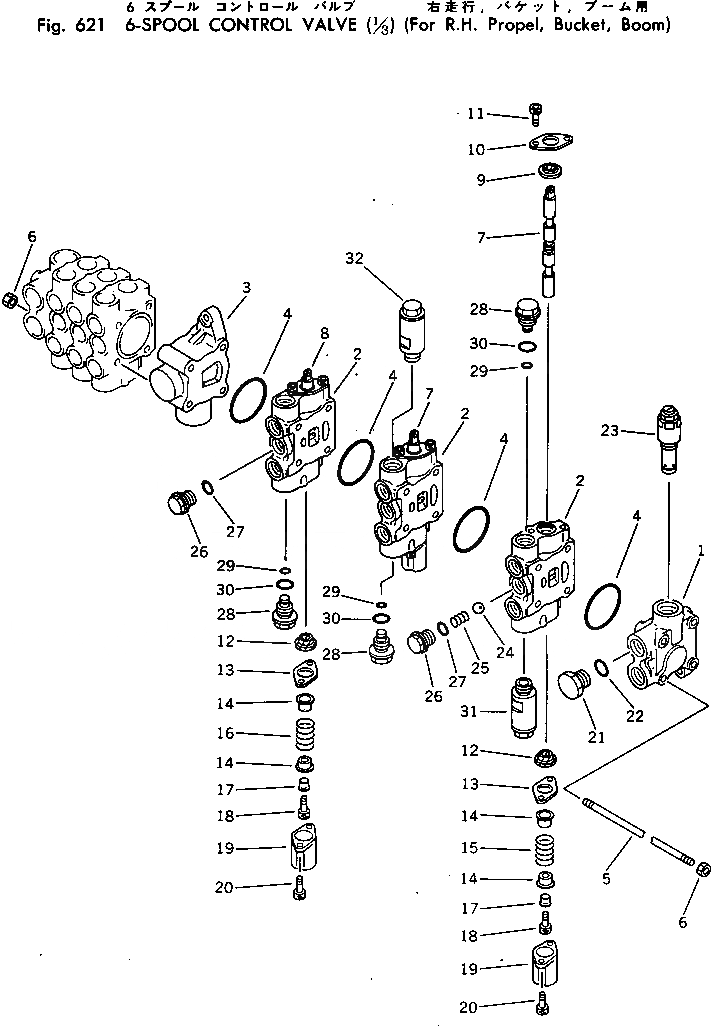

Запчасти Komatsu PC10-3 6-СЕКЦИОНН. УПРАВЛЯЮЩ. КЛАПАН (/)(ДЛЯ ПРАВ.PКАНАТL КОВШ¤СТРЕЛА) ГИДРАВЛИКА

|1

709-36-11100

VALVE ASS'Y

1

BLOCK

2

BLOCK

3

BLOCK

4

07000-12055

O-RING

5

709-36-11510

STUD

6

01580-10806

NUT

7

SPOOL

8

SPOOL

9

709-32-11530

SEAL

10

709-32-11540

PLATE

11

01252-30610

BOLT

12

709-32-11530

SEAL

13

709-32-11540

PLATE

14

709-32-11550

RETAINER

15

709-32-11590

SPRING

16

709-32-11580

SPRING

17

709-32-11560

COLLAR

18

01252-30620

BOLT

19

709-32-11570

COVER

20

01252-30616

BOLT

21

07040-12012

PLUG

22

07000-02034

O-RING

23

700-22-51001

VALVE ASS'Y

24

04260-01270

BALL

25

709-32-11820

SPRING

26

709-32-11810

PLUG

27

07002-11823

O-RING

28

709-32-11830

PLUG

29

709-32-11840

O-RING

30

07002-02034

O-RING

31

709-30-62100

VALVE ASS'Y,BOOM

32

709-30-62300

VALVE ASS'Y,BUCKET
