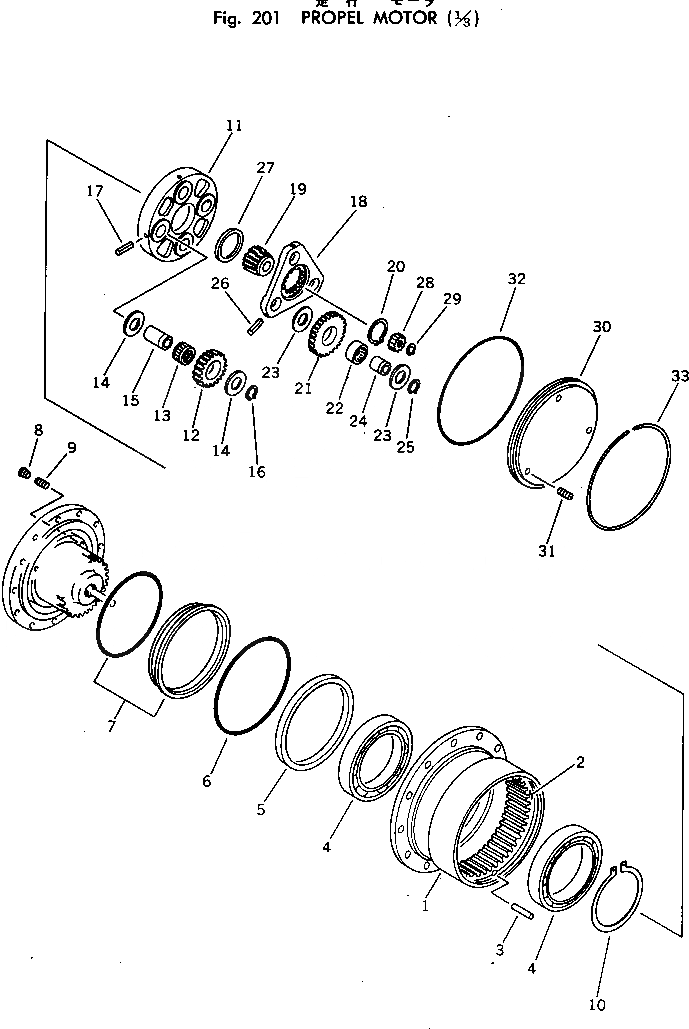

Запчасти Komatsu PC10-3 PКАНАТL МОТОР (/) ХОД И КОНЕЧНАЯ ПЕРЕДАЧА

|1

20N-60-31200

TRAVEL MOTOR ASS'Y

|1

20N-60-31300

BODY ASS'Y

1

BODY

2

GEAR

3

20N-60-31660

PIN

4

20N-60-31670

BEARING

5

20N-60-31330

RING,SEAL

6

20N-60-31680

O-RING

7

20N-60-31690

FLOATING SEAL ASS'Y (KIT)

8

07043-00211

PLUG

9

20N-60-31350

COLLAR,THRUST

10

04070-00105

RING,SNAP

|11

20N-60-31400

CARRIER ASS'Y

11

CARRIER

12

GEAR

13

20N-60-31710

CAGE,NEEDLE

14

20N-60-31720

THRUST WASHER,THRUST

15

20N-60-31310

PIN

16

04064-02512

RING,SNAP

17

04025-00420

PIN,SPRING

|18

20N-60-31500

CARRIER ASS'Y

18

CARRIER 2

19

GEAR

20

04064-03515

RING,SNAP

21

GEAR B2

22

20N-60-31750

BEARING,NEEDLE

23

20N-60-31720

THRUST WASHER,THRUST

24

20N-60-31320

PIN

25

04064-02512

RING,SNAP

26

04025-00420

PIN,SPRING

27

20N-60-31360

COLLAR,THRUST

28

20N-60-31730

GEAR

29

20N-60-31740

RING,SNAP

30

20N-60-31760

COVER

31

07043-00312

PLUG

32

20N-60-31770

O-RING

33

20N-60-31340

RING,SNAP
