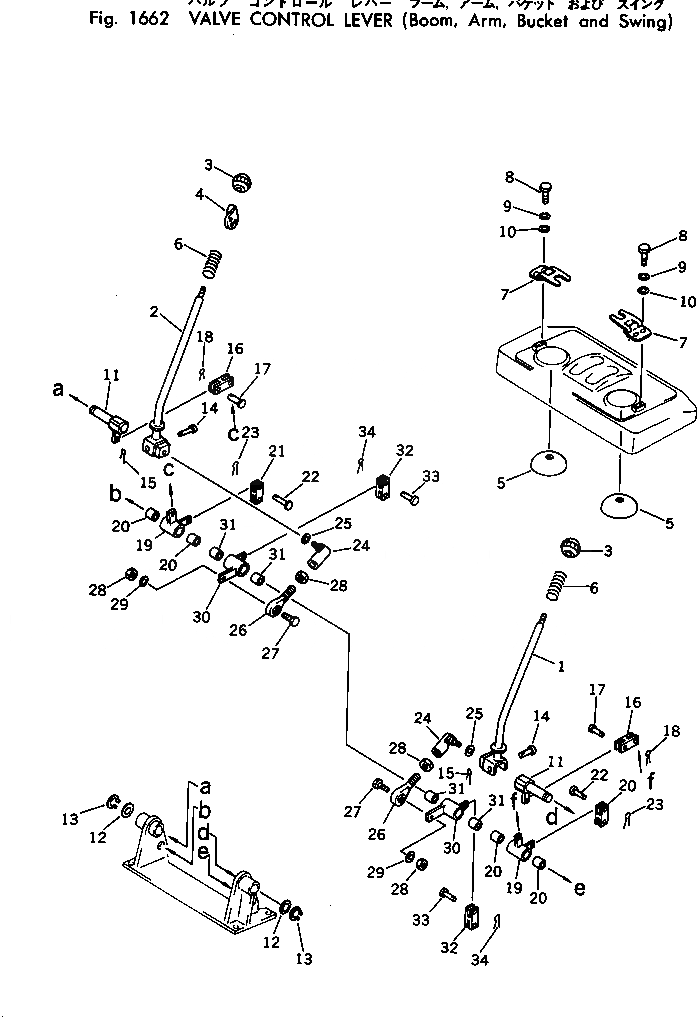

Запчасти Komatsu PC10-2 КЛАПАН РЫЧАГ УПРАВЛ-Я (СТРЕЛА¤РУКОЯТЬ¤КОВШ И ПОВОРОТН.) ГИДРАВЛИКА

1

20N-43-21170

LEVER,L.H.

2

20N-43-21240

LEVER,R.H.

3

20R-43-11280

KNOB

4

20T-06-11360

BRACKET

5

20T-43-11360

COVER

6

09340-10130

SPRING

7

20T-43-11270

HINGE

8

01010-30616

BOLT

9

01602-00619

WASHER,SPRING

10

01640-20610

WASHER

11

20N-43-21180

LEVER

12

01640-22032

WASHER

13

04064-02012

RING,SNAP

14

20T-43-11310

PIN

15

04050-13020

PIN,COTTER

16

04213-20830

YOKE

17

04205-10822

PIN

18

04050-12012

PIN,COTTER

|19

20N-43-00120

LEVER ASS'Y

19

LEVER

20

20T-43-11280

BUSHING

21

04213-20625

YOKE

22

04205-10618

PIN

23

04050-11610

PIN,COTTER

24

20T-43-11320

JOINT,BALL

25

01643-01032

WASHER

26

20T-43-11330

END,ROD

27

01010-31030

BOLT

28

01580-01008

NUT

29

01602-01030

WASHER,SPRING

|30

20N-43-00130

LEVER ASS'Y

30

LEVER

31

20T-43-11280

BUSHING

32

04213-20625

YOKE

33

04205-10618

PIN

34

04050-11610

PIN,COTTER
