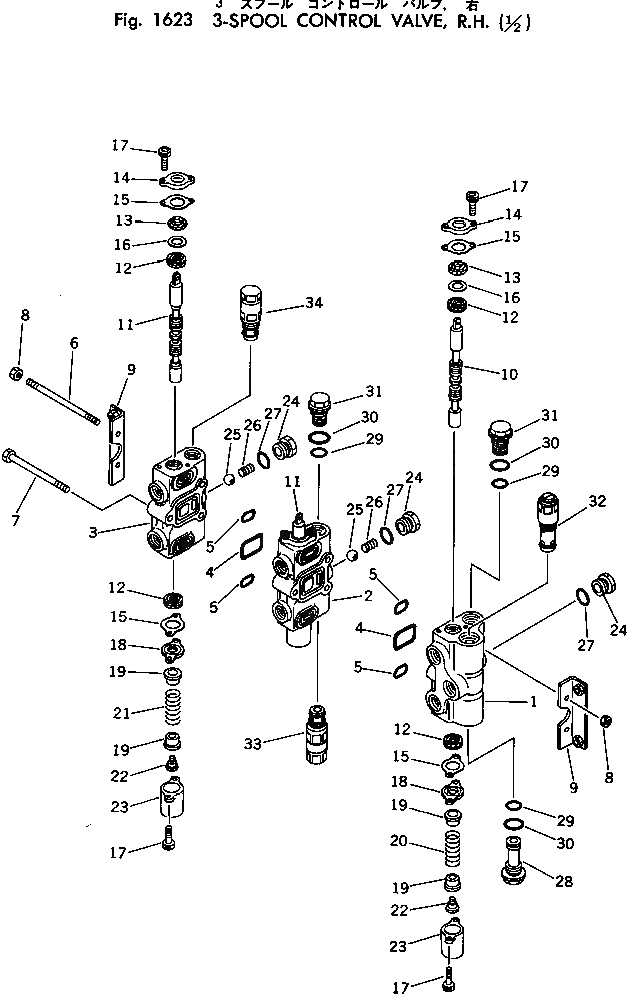

Запчасти Komatsu PC10-2 3-Х СЕКЦИОНН. КОНТРОЛЬН. КЛАПАН¤ ПРАВ. (/) ГИДРАВЛИКА

|1

700-23-33000

VALVE ASS'Y,R.H.

1

BODY,VALVE

2

BLOCK,VALVE

3

COVER,VALVE

4

07000-13040

O-RING

5

700-22-11450

O-RING

6

700-23-13110

STUD

7

700-23-13140

BOLT

8

01580-10806

NUT

9

700-26-11170

ANGLE

10

SPOOL

11

SPOOL

12

700-22-11252

U-PACKING

13

700-22-11261

SEAL,DUST

14

700-22-11270

PLATE

15

700-22-11420

GASKET

16

700-22-11430

COLLAR

17

01252-30616

BOLT

18

700-22-11281

PLATE

19

700-22-11290

RETAINER

20

700-22-11311

SPRING

21

700-23-13130

SPRING

22

700-22-11320

PLUG

23

700-22-11331

COVER

24

700-22-11351

PLUG

25

700-22-12340

BALL

26

700-22-12350

SPRING

27

07002-12434

O-RING

28

700-22-11380

PLUG

29

07000-12014

O-RING

30

07002-02434

O-RING

31

700-22-11360

PLUG

32

700-22-53001

VALVE ASS'Y,MAIN RELIEF

33

700-20-72000

VALVE ASS'Y,SUCTION AND SAFETY

34

700-20-65000

VALVE ASS'Y,SUCTION AND SAFETY
