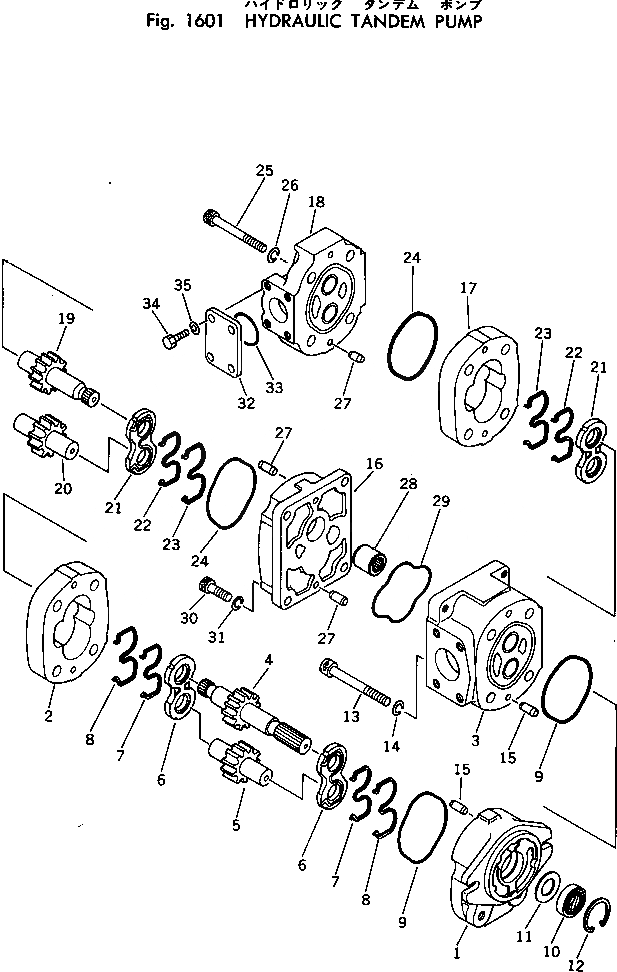

Запчасти Komatsu PC10-2 ГИДРАВЛ СДВОЕНН. НАСОС ГИДРАВЛИКА

|1

705-52-10060

TANDEM PUMP ASS'Y

|1

705-12-20230

PUMP ASS'Y

1

BRACKET ASS'Y

2

CASE,GEAR

3

CARRIER ASS'Y

4

GEAR,DRIVE

5

GEAR,DRIVEN

6

PLATE,SIDE

7

RING,BACK-UP

8

SEAL,SEAL

9

O-RING

10

704-17-01810

SEAL,OIL

11

705-17-01870

PLATE

12

04065-03515

RING,SNAP

13

BOLT

14

WASHER,SPRING

15

PIN,DOWEL

|16

705-12-20530

PUMP ASS'Y

16

BRACKET ASS'Y

17

CASE,GEAR

18

COVER

19

GEAR,DRIVE

20

GEAR,DRIVEN

21

PLATE,SIDE

22

RING,BACK-UP

23

SEAL,SEAL

24

O-RING

25

BOLT

26

WASHER,SPRING

27

PIN,DOWEL

28

705-17-01330

COUPLING ASS'Y

29

705-17-01480

O-RING

30

705-17-02374

BOLT

31

01602-21030

WASHER,SPRING

32

705-17-01880

PLATE

33

07000-03032

O-RING

34

01010-31025

BOLT

35

01602-01030

WASHER,SPRING
