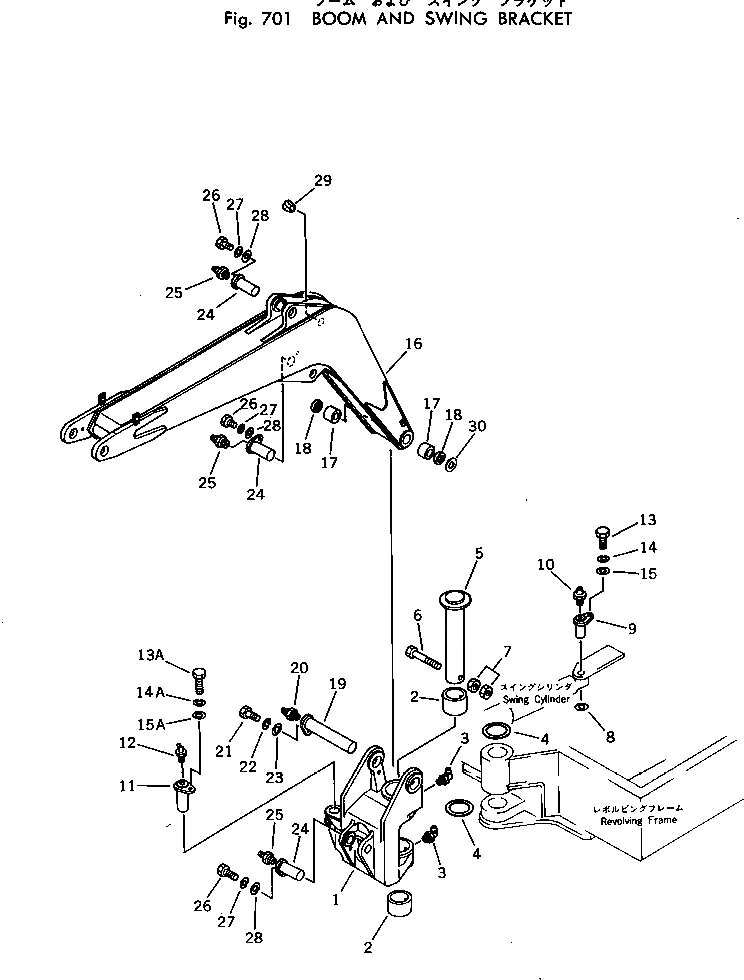

Запчасти Komatsu PC10-1 СТРЕЛА И ПОВОРОТН. БЛОК РАБОЧЕЕ ОБОРУДОВАНИЕ

|$0

20N-70-00030

SWING BRACKET ASS'Y

1

BRACKET

2

07144-10606

BUSHING

3

07020-00900

FITTING,GREASE

4

20N-70-14120

WASHER

5

20N-70-11260

PIN

6

01011-31640

BOLT

7

01580-01613

NUT

8

01640-23045

WASHER

9

20N-70-11270

PIN

10

07020-00000

FITTING,GREASE

11

20R-70-14140

PIN

12

07020-00675

FITTING,GREASE

13

01010-31025

BOLT

13A

01010-31225

BOLT

14

01602-01030

WASHER,SPRING

14A

01602-01236

WASHER,SPRING

15

01643-31032

WASHER

15A

01603-31232

WASHER

|$19

20N-70-00101

BOOM ASS'Y

|$20

20N-70-00100

BOOM ASS'Y

16

BOOM

16

BOOM

17

07143-10304

BUSHING

18

07145-00035

SEAL,DUST

19

20N-70-11210

PIN

20

07020-00000

FITTING,GREASE

21

01010-31235

BOLT

22

01602-01236

WASHER,SPRING

23

01643-31232

WASHER

24

20N-70-11230

PIN

25

07020-00000

FITTING,GREASE

26

01010-31230

BOLT

27

01602-01236

WASHER,SPRING

28

01643-31232

WASHER

29

07049-01215

PLUG

30

20R-70-11270

SPACER, 1.0MM
