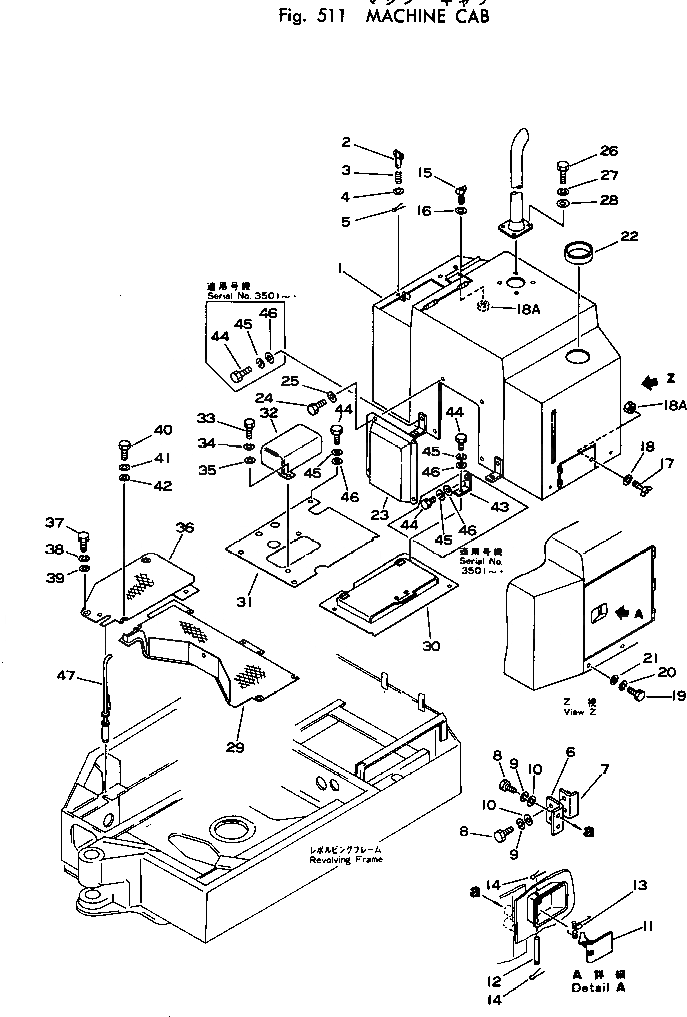

Запчасти Komatsu PC10-1 КАБИНА ОСНОВНАЯ РАМА И КАБИНА

|$0

20N-54-00013

MACHINE CAB ASS'Y

1

20N-54-11113

CAB,MACHINE

2

101-57-31210

LOCK

3

09459-01614

SPRING

4

01642-01016

WASHER

5

04050-03015

PIN,COTTER

6

09461-00011

BRACKET

7

20N-54-11250

BRACKET

8

01010-51025

BOLT

9

01602-21030

WASHER,SPRING

10

01643-31032

WASHER

11

09461-00021

LEVER

12

09461-00022

PIN

13

09461-00023

SPRING

14

04050-13018

PIN,COTTER

15

01434-10830

BOLT, WING,WING

15

01434-10820

BOLT, WING,WING

16

01643-30823

WASHER

17

01434-10830

BOLT, WING,WING

17

01434-10820

BOLT, WING,WING

18

01643-30823

WASHER

18A

01580-10806

NUT

19

01010-51025

BOLT

20

01602-21030

WASHER,SPRING

21

01643-31032

WASHER

22

20N-54-11270

SEAL

23

20N-54-11260

COVER

24

01010-51020

BOLT

25

01602-21030

WASHER

26

01010-51030

BOLT

27

01602-21030

WASHER,SPRING

28

01643-31032

WASHER

29

20N-54-13112

FLOOR

30

20N-54-13142

FLOOR

31

20N-54-13163

FLOOR

32

20N-54-13170

COVER

33

01010-51020

BOLT

34

01602-21030

WASHER,SPRING

35

01643-31032

WASHER

36

20N-54-13121

FLOOR

37

01010-51020

BOLT

38

01602-21030

WASHER,SPRING

39

01643-31032

WASHER

40

01010-51020

BOLT

41

01602-21030

WASHER,SPRING

42

124-43-26370

WASHER

43

20N-54-13240

ANGLE

44

01010-51025

BOLT

44

01010-51025

BOLT

45

01602-21030

WASHER,SPRING

45

01602-21030

WASHER,SPRING

46

01643-31032

WASHER

46

01643-31032

WASHER

47

20R-54-15311

PIN,SWING LOCK
