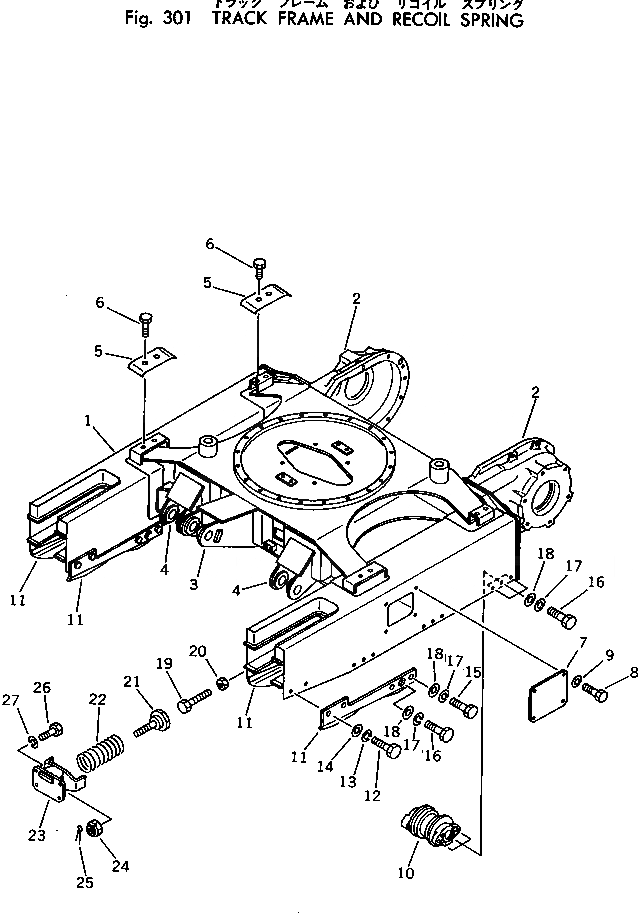

Запчасти Komatsu PC10-1 ГУСЕНИЧНАЯ РАМА И ПРУЖИНА ХОДОВАЯ

1

20N-30-11113

FRAME,TRACK

2

CASE,L.H. (WELDED)

2

CASE,R.H. (WELDED)

3

BRACKET,CENTER (WELDED)

4

BRACKET,L.H. (WELDED)

4

BRACKET,R.H. (WELDED)

5

20R-30-11190

PLATE

6

01010-31225

BOLT

7

20R-30-17110

COVER

8

01010-31016

BOLT

9

01602-01030

WASHER,SPRING

10

10E-30-00051

TRACK ROLLER ASS'Y

11

20R-30-11321

GUARD,OUTER, L.H. AND INNER, R.H.

11

20R-30-11331

GUARD,INNER, L.H. AND OUTER, R.H.

12

01010-31435

BOLT

13

01602-01442

WASHER,SPRING

14

01643-31445

WASHER

15

01010-31445

BOLT

16

01010-31435

BOLT

17

01602-01442

WASHER,SPRING

18

01643-31445

WASHER

19

10E-30-13141

BOLT

20

10E-30-13150

NUT

21

10E-30-13120

ROD

22

10E-30-13160

SPRING,RECOIL

23

10E-30-13130

BRACKET

24

01590-02226

NUT

25

04050-05040

PIN,COTTER

26

01010-31230

BOLT

27

01602-01236

WASHER,SPRING
