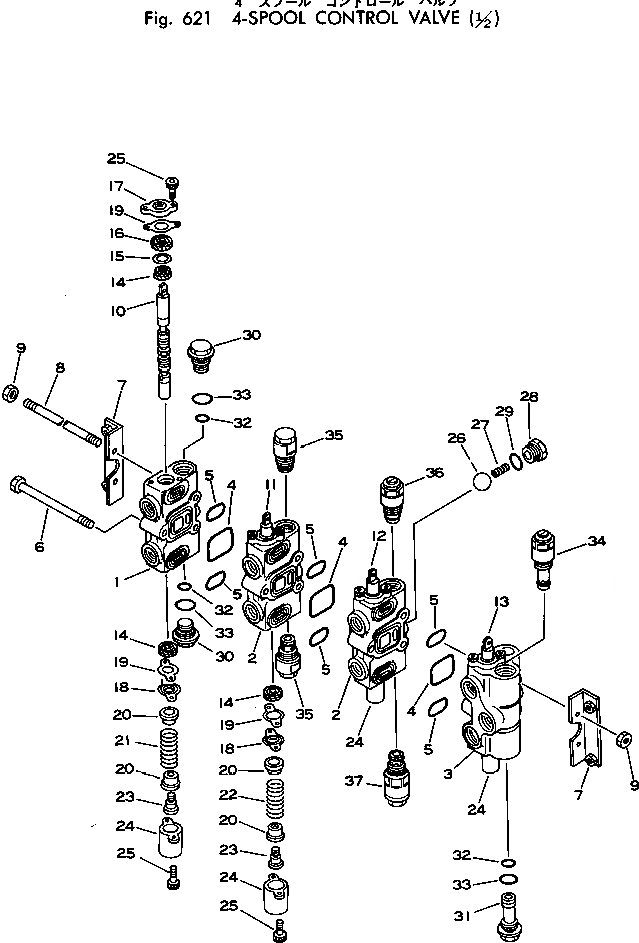

Запчасти Komatsu PC10-1 4-Х СЕКЦИОНН. УПРАВЛЯЮЩ. КЛАПАН (/) ГИДРАВЛИКА

|1

700-24-27001

CONTROL VALVE ASS'Y

1

COVER,VALVE

2

BLOCK,VALVE

3

BODY,VALVE

4

07000-13040

O-RING

5

700-22-11450

O-RING

6

700-24-13140

BOLT

7

700-26-11170

ANGLE

8

700-24-13110

STUD

9

01580-10806

NUT

10

SPOOL

11

SPOOL

12

SPOOL

13

SPOOL

14

700-22-11252

U-PACKING

15

700-22-11430

COLLAR

16

700-22-11261

SEAL,DUST

17

700-22-11270

PLATE

18

700-22-11281

PLATE

19

700-22-11420

GASKET

20

700-22-11290

RETAINER

21

700-22-11311

SPRING

22

700-23-13130

SPRING

23

700-22-11320

PLUG

24

700-22-11331

COVER

25

01252-40616

BOLT

26

700-22-12340

BALL

27

700-22-12350

SPRING

28

700-22-11351

PLUG

29

07002-12434

O-RING

30

700-22-11360

PLUG

31

700-26-11150

PLUG

32

07000-12014

O-RING

33

07002-02434

O-RING

34

700-22-53000

VALVE ASS'Y,(SEE FIG.622)

35

700-20-81000

VALVE ASS'Y,(SEE FIG.622)

36

700-20-75000

VALVE ASS'Y,(SEE FIG.622)

37

700-20-72000

VALVE ASS'Y,(SEE FIG.622)
