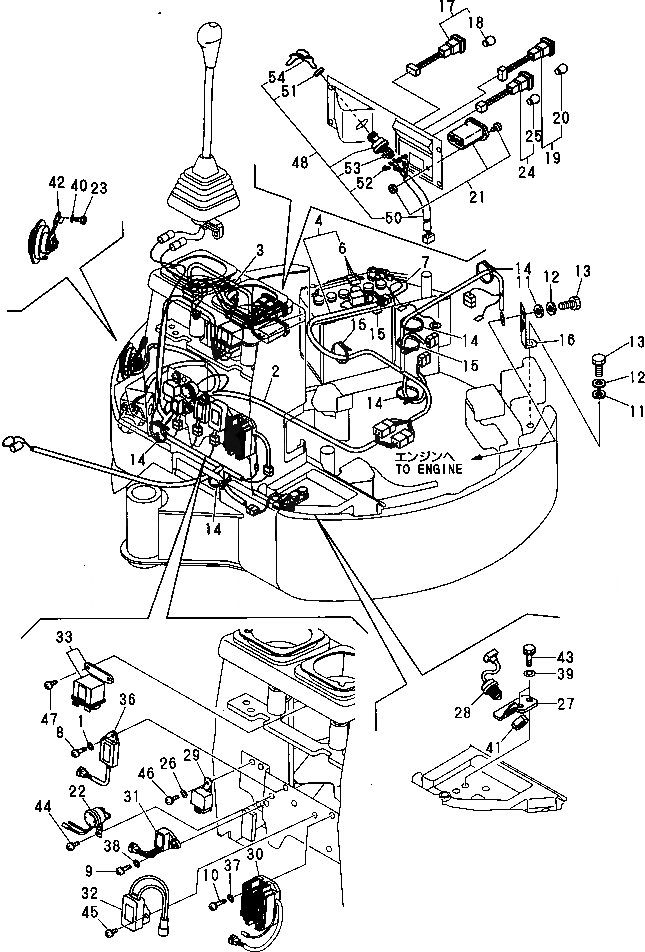

Запчасти Komatsu PC09FR-1 ЭЛЕКТРИЧ. ЧАСТИ КОМПОНЕНТЫ ДВИГАТЕЛЯ И ЭЛЕКТРИКА

1

YM22137-060000

WASHER

2

YM172186-16503

WIRING HARNESS

3

YM172186-16551

HARNESS,C

4

YM172186-16511

WIRING HARNESS,B

|5

HARNESS,WIRE

6

YM29411-100000

FUSE¤ 10A,CARTRIDGE

7

YM172186-16530

LINK,FUSIBLE

8

YM26022-060202

SCREW

9

YM26022-060202

SCREW

10

YM26022-060252

SCREW

11

YM22137-100000

WASHER

12

YM22217-100000

WASHER

13

YM26116-100162

BOLT

14

YM933168-55770

BAND

15

YM933168-55770

BAND

16

YM933171-15801

WIRE,EARTH

17

YM172149-17120

LAMP

18

YM172149-17140

BULB

19

YM172149-17130

LAMP

20

YM172149-17140

BULB

21

YM172186-17100

METER,HOUR

22

YM172141-17150

BUZZER

23

YM26116-060122

BOLT

24

YM933113-05190

LAMP,OIL

25

YM933113-05180

BULB

26

YM22137-060000

WASHER

27

YM17218617440K

STAY

28

YM194464-52190

SWITCH,SAFETY START

29

YM119247-77100

RELAY,SAFETY

30

YM119230-77710

LIMITER,CURRENT

31

YM121522-77721

INDICATOR,CHARGING

32

YM129155-77810

REGISTOR

33

YM119650-77910

RELAY,GLOW

|34

BODY,RELAY

|35

BRACKET,RELAY

36

YM119632-77922

TIMER

37

YM22137-060000

WASHER

38

YM22137-060000

WASHER

39

YM22137-080000

WASHER

40

YM22217-060000

WASHER

41

YM26776-180002

NUT,LOCK

42

YM933110-05300

HORN

43

YM26013-080202

BOLT

44

YM26022-060122

SCREW

45

YM26022-060122

SCREW

46

YM26022-060162

SCREW

47

YM26022-060122

SCREW

48

YM172986-17100

SWITCH ASS'Y,STARTER

|48

SWITCH,STARTING

50

YM172986-16520

HARNESS

51

YM172987-17120

NUT

52

YM26587-040082

SCREW

53

YM172987-16530

PIPE,FUEL

54

KEY ASS'Y
