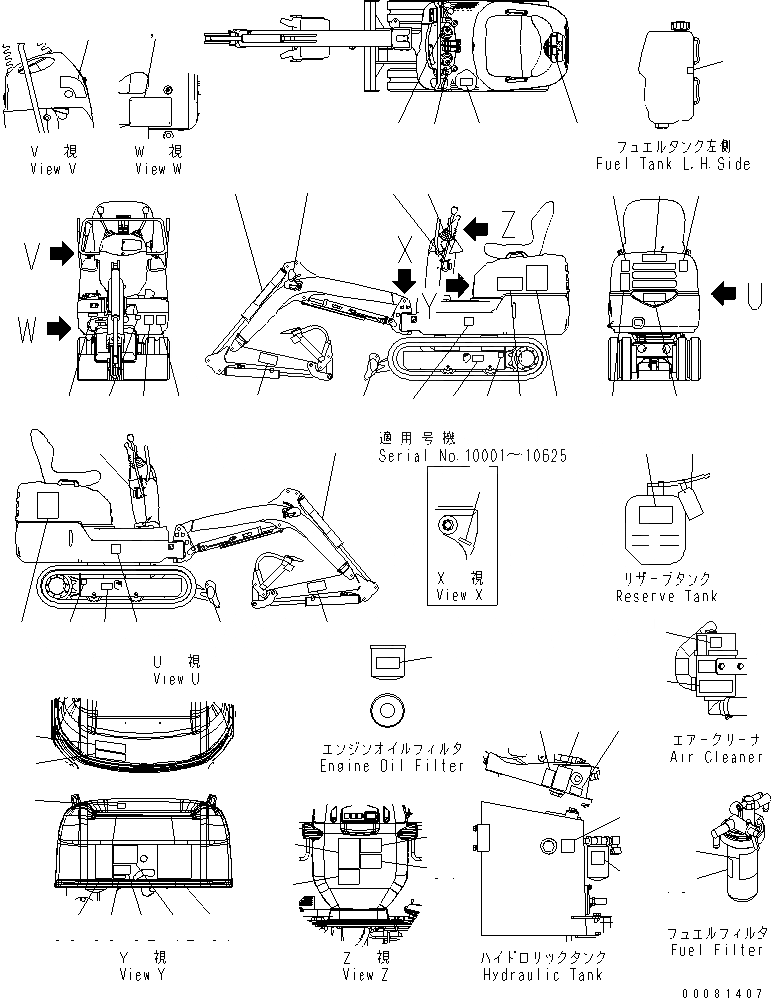

Запчасти Komatsu PC09-1 МАРКИРОВКА (АНГЛ.) (РЕГУЛЯТОР СПЕЦ-Я.) (ДЛЯ KUE) МАРКИРОВКА

1

09690-P0200

PLATE, MARK,KOMATSU

2

09690-P0160

PLATE, MARK,KOMATSU

3

21S-98-31110

MARK,PC09

4

21S-98-31120

MARK,PC09

5

21S-98-31260

PLATE, MARK,GALEO

6

09601-000J1

PLATE, NAME,(LIMITED SUPPLY)

6

09601-00031

PLATE, NAME,(LIMITED SUPPLY)

6

09601-00030

PLATE, NAME,(LIMITED SUPPLY)

7

04418-13060

SCREW

8

21U-98-31160

PLATE, MARK,LOCATION OF CENTER OF GRAVITY

9

20A-98-11410

PLATE, MARK,SERIAL NO.

10

21S-98-2A110

MARK,UTILITY

11

21S-98-28330

PLATE,HYDRAULIC TANK

12

21S-98-28340

PLATE,HYDRAULIC OIL LEVEL

13

21S-98-28350

PLATE,HYDRAULIC OIL FILTER

14

22L-98-18290

PLATE,ENGINE OIL LEVEL

14

21S-98-28440

PLATE,ENGINE OIL LEVEL

15

21S-98-28970

PLATE,FUEL TANK

16

21S-98-28980

PLATE,AIR CLEANER

17

21S-98-33270

PLATE,GREASING POINT

18

22L-98-18140

PLATE,P.T.O.

19

09651-A0841

PLATE, SAFETY,OPERATION MANUAL

20

09653-A0361

PLATE, SAFETY,HOT WATER AND OIL HAZARD

21

09654-A0841

PLATE, SAFETY,WARNING WHEN GET UP FROM SEAT

22

09657-A0881

PLATE, SAFETY,CAUTION FROM FLYING CYL. PLUG

23

09685-00001

PLATE, OPERATING,LOCK

24

09808-A0881

PLATE, SAFETY,ELECTRIC SHOCK CAUTION

25

22F-98-17210

PLATE, CAUTION,FUEL FILTER

25

20T-98-72410

PLATE, CAUTION,FUEL FILTER

26

22F-98-17220

PLATE, CAUTION,ENGINE OIL FILTER

26

20T-98-72460

PLATE, CAUTION,ENGINE OIL FILTER

27

21S-98-32120

PLATE,KEEP OUT OF WORKING AREA

28

21S-98-32171

PLATE,AIR CLEANER

28

21S-98-32170

PLATE,AIR CLEANER

29

21S-98-33220

PLATE,KEEP OFF SWING AREA

30

21S-98-33260

PLATE,CAUTION AT STARTING AROUND

31

22K-98-18121

PLATE,TANK INTERIOR TO BE PRESSURIZE

31

22K-98-18120

PLATE,TANK INTERIOR TO BE PRESSURIZE

32

22L-98-18130

PLATE, SAFETY,CAUTION ROLL UP

33

21S-98-28460

PLATE,STARTING SWITCH

34

21S-98-31141

PLATE,SWING LOCK

34

21S-98-31140

PLATE,SWING LOCK

35

21S-98-31160

PLATE,SWING AND TRAVEL 2 SPEED

36

21S-98-31181

PLATE,BLADE

37

21S-98-31221

OIL CHART

38

21S-98-31280

PLATE, OPERATING,VALIABLE GAUGE

39

21S-98-32150

PLATE,FUSE BOX

40

21S-98-33251

PLATE,ISO OPERATION PATTERN

40

21S-98-33250

PLATE,ISO OPERATION PATTERN

41

21S-98-32241

PLATE, CAUTION,CAUTION OF MIN. VALIABLE GAUGE

41

21S-98-32240

PLATE,CAUTION OF MIN. VALIABLE GAUGE

42

21S-98-33120

PLATE,METHOD OF LIFTING MACHINE

43

21S-98-33210

PLATE,SLIDE SEAT

44

21U-98-31150

PLATE, MARK,HANDRING POSITION

45

22J-98-1A120

PLATE,MACHINE FIXATION

46

09963-A1640

TAG,INSPECTION AND MAINTENANCE

47

09696-40091

PLATE,LWA 91

48

09696-50074

PLATE,LPA 74

49

21S-98-33280

PLATE,UTILITY LOGO MARK

50

09642-13000

PLATE, INSTRUCTION

51

09994-0030A

TAG, INSTRUCTION
