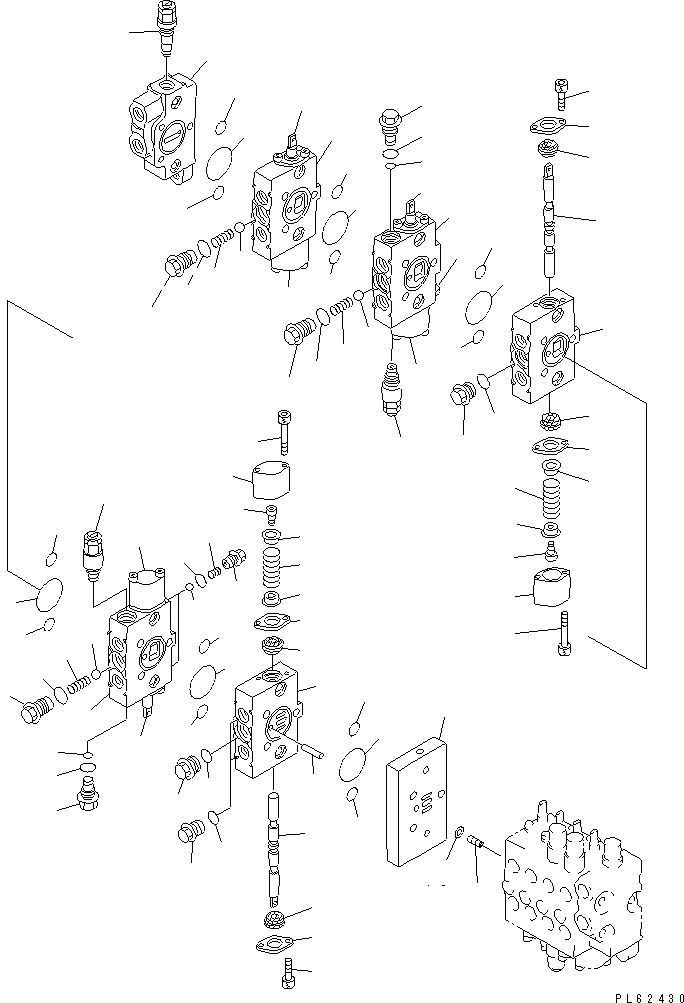

Запчасти Komatsu PC08UU-1-A ГИДРАВЛ УПРАВЛЯЮЩ. КЛАПАН (9-СЕКЦИОНН.) (/) (ВНУТР. ЧАСТИ) ГИДРАВЛИКА

|1

724-00-13000

VALVE ASS'Y

1

724-00-31310

BLOCK

|2

724-00-33950

SPOOL KIT,SERVICE

2

BLOCK,SERVICE

3

SPOOL,SERVICE

|4

724-00-33960

SPOOL KIT,OFFSET

4

BLOCK,OFFSET

5

SPOOL,OFFSET

|6

724-00-33970

SPOOL KIT,R.H. TRAVEL

6

BLOCK,R.H. TRAVEL

7

SPOOL,R.H. TRAVEL

|8

724-00-33980

SPOOL KIT,BOOM

8

BLOCK,BOOM

9

SPOOL,BOOM

|10

724-00-33990

SPOOL KIT,BUCKET

10

BLOCK,BUCKET

11

SPOOL,BUCKET

12

724-00-31230

BLOCK,CENTER

13

724-00-81510

O-RING

14

07000-12011

O-RING

15

724-00-55000

VALVE ASS'Y,MAIN RELIEF

16

724-00-63000

VALVE ASS'Y,SAFETY

17

724-00-61000

VALVE ASS'Y,SAFETY

18

724-00-31210

PLATE

19

724-00-31260

PISTON

20

724-00-31270

TUBE

21

724-00-31710

COVER

22

724-00-31720

PLATE

23

724-00-31730

RETAINER

24

724-00-31740

BOLT

25

724-00-31750

SPRING

26

01252-30510

BOLT

27

01252-30540

BOLT

28

724-00-31760

SEAL,OIL

29

724-00-81110

SLEEVE

30

724-00-81120

SPRING

31

724-00-81130

BALL

32

07002-11623

O-RING

33

724-00-81210

SLEEVE

34

724-00-81220

SPRING

35

724-00-81230

BALL

36

07002-11223

O-RING

37

724-00-81320

PLUG

38

07002-11423

O-RING

39

724-00-51150

O-RING

40

724-00-81330

PLUG

41

07002-11623

O-RING

42

724-00-81340

PLUG

43

07002-11423

O-RING
