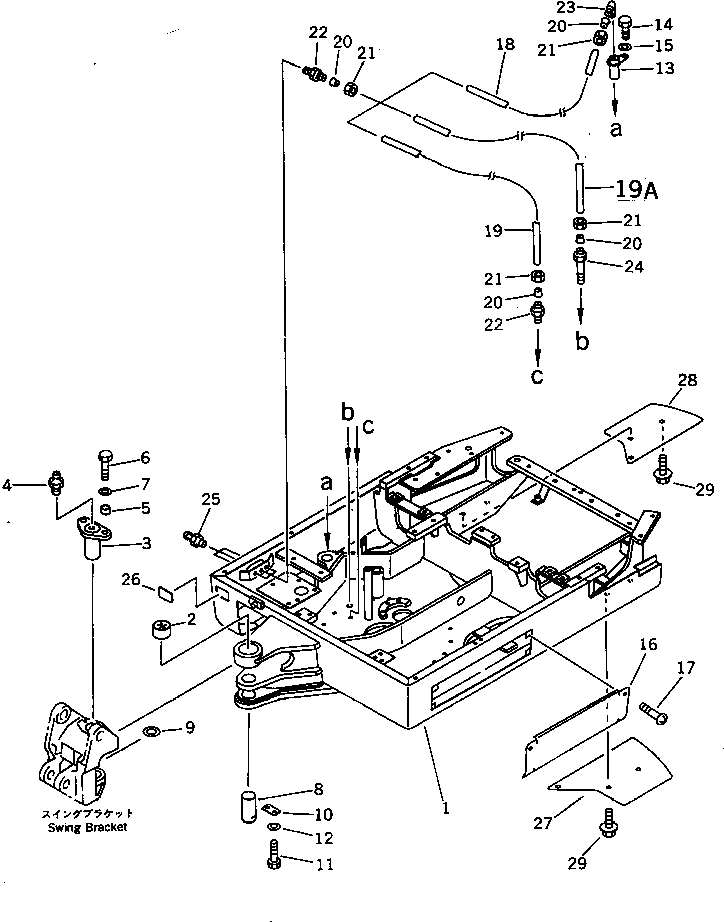

Запчасти Komatsu PC07-2 ОСНОВНАЯ РАМА ОСНОВНАЯ РАМА И ЕЕ ЧАСТИ

1

20W-46-71111

FRAME,REVOLVING

|1

20W-46-71111

FRAME

2

20M-46-71171

BUSHING

3

20M-70-71123

PIN

4

07020-00000

FITTING,GREASE

5

20M-70-71210

COLLAR

6

01010-51025

BOLT

7

01643-31032

WASHER

8

20M-70-71131

PIN

9

21U-70-11740

SPACER¤ 1.0MM

10

04082-00212

LOCK

11

01010-51225

BOLT

12

01643-31232

WASHER

13

20M-70-71181

PIN

14

01010-51020

BOLT

15

01643-31032

WASHER

16

20M-46-71161

COVER

17

21R-06-11150

SCREW

18

20M-46-71221

TUBE

|18

20M-46-71220

TUBE

19

20M-46-71212

TUBE

|19

20M-46-71211

TUBE

19A

20M-46-71230

TUBE

20

21R-46-11411

NIPPLE

|20

07831-00411

SLEEVE

21

07832-00410

NUT

22

20R-46-11160

CONNECTOR

23

20R-46-11421

ELBOW

|23

20R-46-11150

ELBOW

24

20P-46-71320

ADAPTER

|24

20N-46-41231

CONNECTOR

25

07020-00000

FITTING,GREASE

26

20M-46-71250

CAP

27

20W-46-22220

COVER,L.H.

28

20W-46-22210

COVER,R.H.

29

01435-00820

BOLT

|29

01435-00820

BOLT
