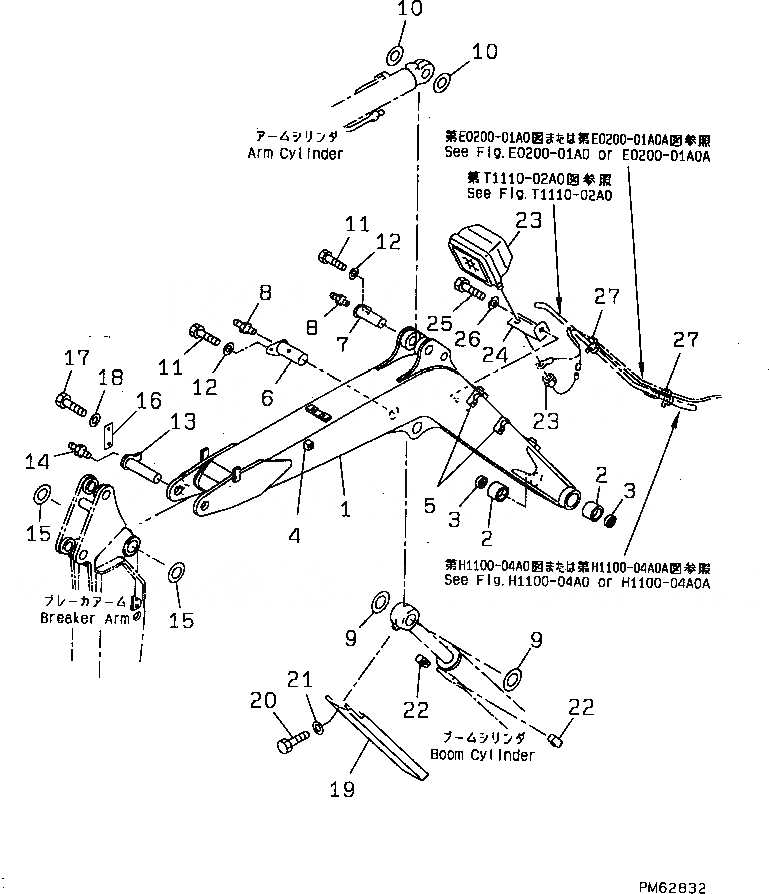

Запчасти Komatsu PC07-2 СТРЕЛА (ДЛЯ МОЛОТА ТРУБЫ)(№-) РАБОЧЕЕ ОБОРУДОВАНИЕ

|1

20W-970-2900

BOOM ASS'Y

1

BOOM

2

07143-10304

BUSHING

3

07145-00035

SEAL,DUST

4

01571-01016

SEAT (WELDED)

5

20N-973-3350

SEAT (WELDED)

6

20M-70-72131

PIN

7

20M-70-72121

PIN

8

07020-00000

FITTING,GREASE

9

20N-70-41270

SPACER¤ 1.0MM

10

20N-70-11280

SPACER¤ 1.0MM

11

01010-51020

BOLT

12

01643-31032

WASHER

13

20M-70-61240

PIN

14

07020-00000

FITTING,GREASE

15

20N-70-11280

SPACER¤ 1.0MM

16

20M-70-61120

PLATE

17

01010-51020

BOLT

18

01643-31032

WASHER

19

20M-62-73321

COVER

20

01010-50816

BOLT

21

01643-30823

WASHER

22

20M-62-73310

GUIDE

23

20T-06-71350

WORK LAMP ASS'Y

|23

20T-06-71550

BULB¤ 60W

24

20P-06-71110

BRACKET

25

01010-51225

BOLT

26

01643-31232

WASHER

27

20N-06-71310

BAND
