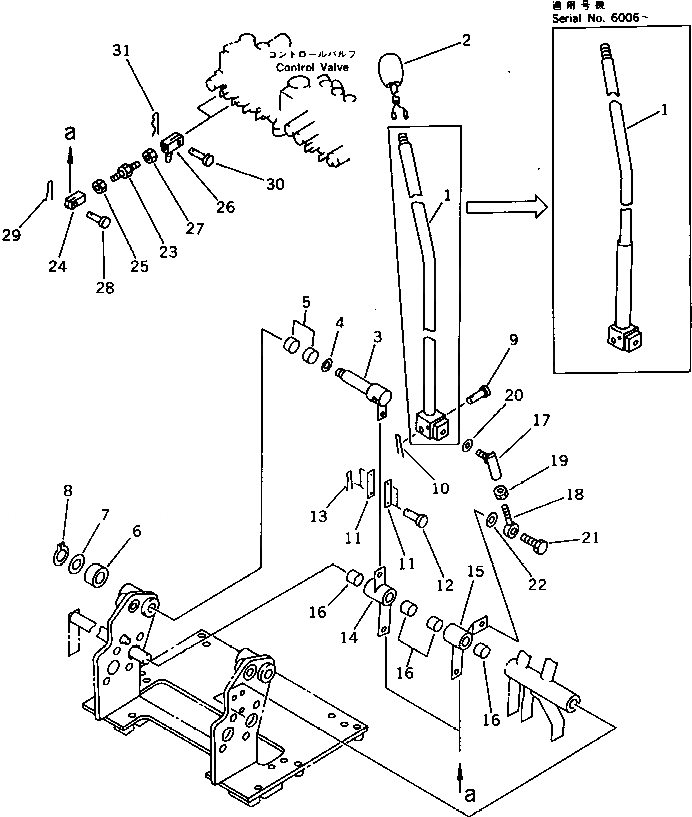

Запчасти Komatsu PC07-1 СТРЕЛА И КОВШ РЫЧАГ УПРАВЛ-Я(№-) СИСТЕМА УПРАВЛЕНИЯ И ОСНОВНАЯ РАМА

1

20W-43-12123

LEVER

|1

20W-43-12122

LEVER

2

203-06-42130

SWITCH,HORN

3

20W-43-00210

LEVER

4

01640-22032

WASHER

5

195-43-43190

BEARING

6

20W-43-12690

SPACER

7

01640-21626

WASHER

8

04064-01610

RING,SNAP

9

20T-43-11310

PIN

10

04050-13022

PIN,COTTER

11

20W-43-00220

YOKE

12

04205-30825

PIN

13

04050-12015

PIN,COTTER

14

20W-43-00160

LEVER

15

20W-43-00170

LEVER

16

195-43-43190

BEARING

17

20T-43-11320

JOINT,BALL

18

20T-43-11330

END,ROD

19

01580-11008

NUT

20

01643-31032

WASHER

21

01010-51035

BOLT

22

01643-31032

WASHER

23

20W-43-11210

ROD

24

20M-43-48271

YOKE

25

01580-10806

NUT

26

20W-43-11220

YOKE,L.H. THREAD

27

01508-40805

NUT,L.H. THREAD

28

04205-30822

PIN

29

04050-12015

PIN,COTTER

30

04205-10520

PIN

31

04052-10530

PIN,SNAP
