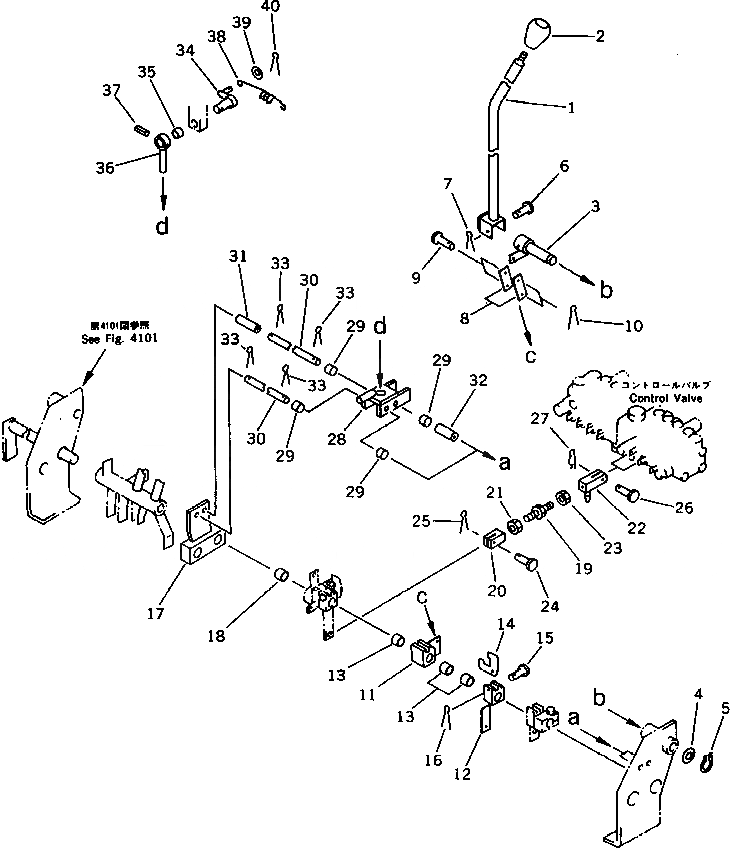

Запчасти Komatsu PC07-1 РЫЧАГ УПРАВЛЕНИЯ ПОВОРОТОМ(№-) СИСТЕМА УПРАВЛЕНИЯ И ОСНОВНАЯ РАМА

1

20W-43-12111

LEVER

2

203-43-41910

KNOB

3

20W-43-12211

LEVER

4

01640-02032

WASHER

5

04064-02012

RING,SNAP

6

20T-43-11310

PIN

7

04050-13020

PIN,COTTER

8

20M-43-48191

YOKE

9

04205-30822

PIN

10

04050-12015

PIN,COTTER

11

20W-43-12272

LEVER

12

20W-43-12281

LEVER

13

09350-02015

BUSHING

14

20W-43-12450

PLATE

15

04205-10630

PIN

16

04050-11612

PIN,COTTER

17

20W-43-12180

BRACKET

18

09350-02015

BUSHING

19

20W-43-11210

ROD

20

20M-43-48271

YOKE

21

01580-10806

NUT

22

20W-43-11220

YOKE,L.H. THREAD

23

01508-40805

NUT,L.H. THREAD

24

04205-30822

PIN

25

04050-12015

PIN,COTTER

26

04205-10520

PIN

27

04052-10530

PIN,SNAP

28

20W-43-12381

BRACKET

29

20S-43-31560

BUSHING

30

20W-43-12410

ROD

31

20W-43-12430

SPACER

32

20W-43-12420

SPACER

33

04050-13020

PIN,COTTER

34

20W-43-12470

LEVER

35

09350-01415

BUSHING

36

20W-43-12480

LEVER

37

04025-00524

PIN,SPRING

38

20W-43-12490

SPRING

39

01641-20608

WASHER

40

04050-11210

PIN,COTTER
