Запчасти Komatsu PC05-7 СИДЕНЬЕ ОПЕРАТОРА ЧАСТИ КОРПУСА И КАБИНА

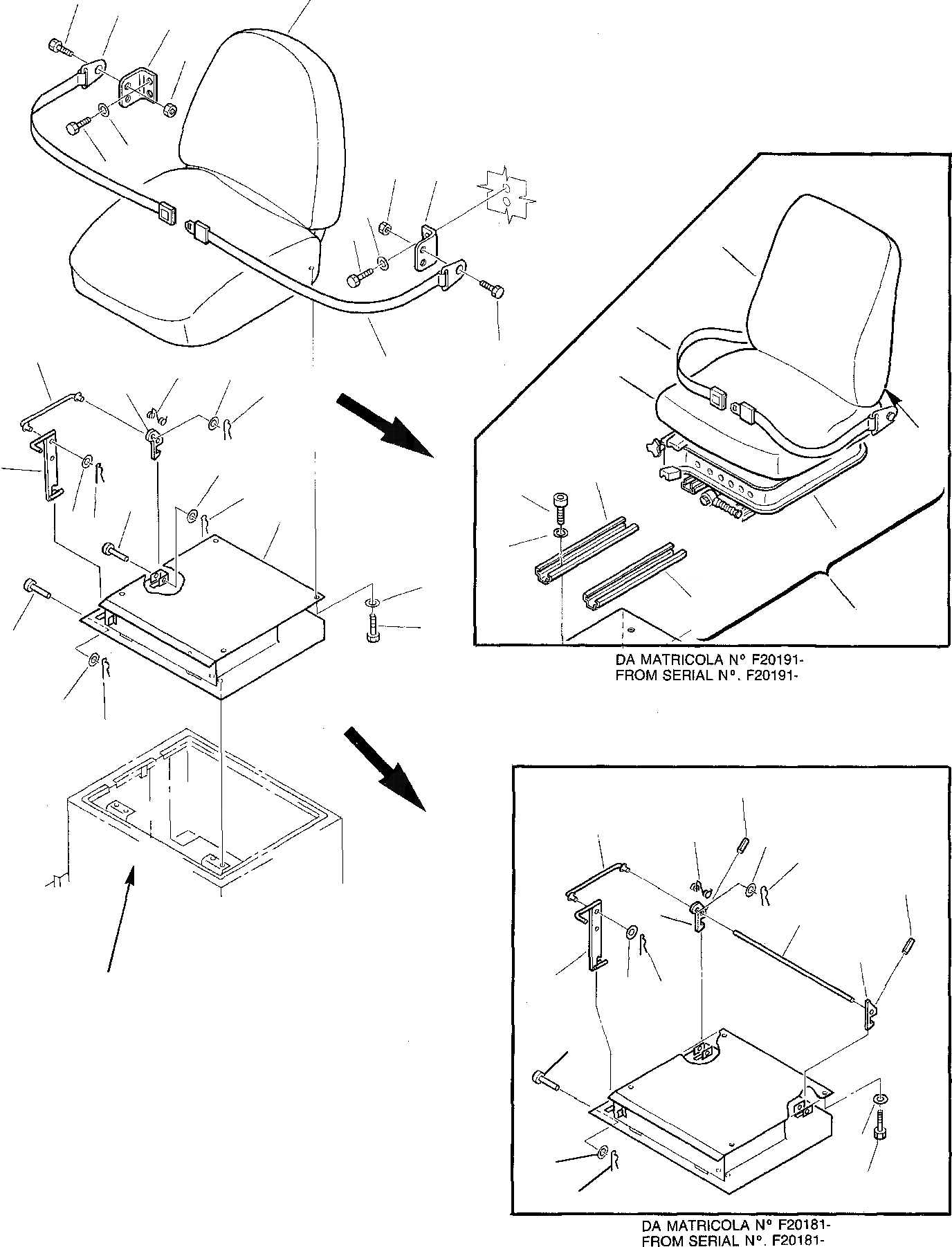

Схема запчастей Komatsu PC05-7 - СИДЕНЬЕ ОПЕРАТОРА ЧАСТИ КОРПУСА И КАБИНА
1
17
16
A
13
18
15
14
18
13
15
14
23
28
6
17
24
8
10
16
7
11
26
5
10
27
3
12
9
2
10
11
25
4
4
27
22
3
9
10
12
21
6
8
10
11
21
7
19
20
5
10
11
9
4
10
3
12

Артикул

Название

Примечание

Количество

1

816100050

OPERATOR'S SEAT, ASSY.

2

3F0550052

SUPPORT

3

801105531

SCREW

4

802170001

WASHER

5

3F0550053

LEVER

6

3F0550054

TIE-ROD

7

3F0550626

LEVER

8

804040008

SPRING

8

3F0550650

SPRING

9

390596030

PIN

9

390596030

PIN

10

802170001

WASHER

10

802170001

WASHER

11

802610041

PIN, COTTER

12

802620095

PIN, SNAP

12

802620095

PIN, COTTER

13

500158865

SUPPORT

14

801015110

BOLT

15

802170002

WASHER

16

816210421

SEAT BELT

17

801050037

BOLT

18

801730002

NUT

19

3F0550649

PIN

20

3F0550642

LEVER

21

802510115

PEG

22

816100052

OPERATOR'S SEAT, ASSY.

22

816100053

OPERATOR'S SEAT, ASSY.

23

816101117

SEAT BACK

23

816101134

SEAT BACK

24

816101116

SEAT CUSHION

24

816101133

SEAT CUSHION

25

816101122

PROTECTION

25

816101139

PROTECTION

26

816101119

DAMPER

26

816101136

KIT, SPRING

27

816101128

KIT, DRIVING SET

27

816101135

KIT, DRIVING SET

28

816210421

SEAT BELT

Выбрано товаров: 38
