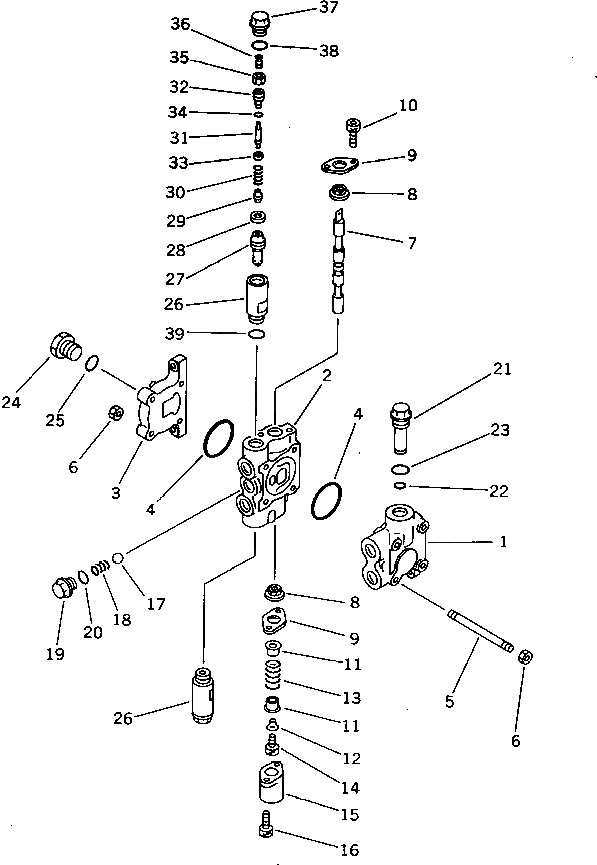

Запчасти Komatsu PC05-7 ГИДРАВЛ УПРАВЛЯЮЩ. КЛАПАН (-СЕКЦ.) (ВНУТР. ЧАСТИ) (ДЛЯ НАВЕСН. ОБОРУД.)(№8-) ГИДРАВЛИКА

|$0

709-31-11301

VALVE ASS'Y

1

BLOCK

2

BLOCK

3

COVER

4

07000-12055

O-RING

5

709-31-11510

STUD

6

01580-10806

NUT

7

SPOOL

8

709-32-11530

SEAL,DUST

9

709-32-11540

PLATE

10

01252-30610

BOLT

11

709-32-11550

RETAINER

12

709-32-11560

COLLAR

13

709-32-11590

SPRING

14

01252-30620

BOLT

15

709-32-11570

COVER

16

01252-30616

BOLT

17

04260-01270

BALL

18

709-32-11820

SPRING

19

709-32-11810

PLUG

20

07002-11823

O-RING

21

700-26-11150

PLUG

22

07000-12014

O-RING

23

07002-02434

O-RING

24

07040-12012

PLUG

25

07002-02034

O-RING

|$26

709-30-62201

VALVE ASS'Y,SUCTION AND SAFETY

26

709-30-62110

SLEEVE

27

VALVE

28

SEAL

29

POPPET

30

SPRING

31

PISTON

32

SCREW

33

SEAL

34

O-RING

35

NUT

36

700-20-62170

SPRING

37

709-30-62150

PLUG

38

07002-12034

O-RING

39

07002-02034

O-RING
