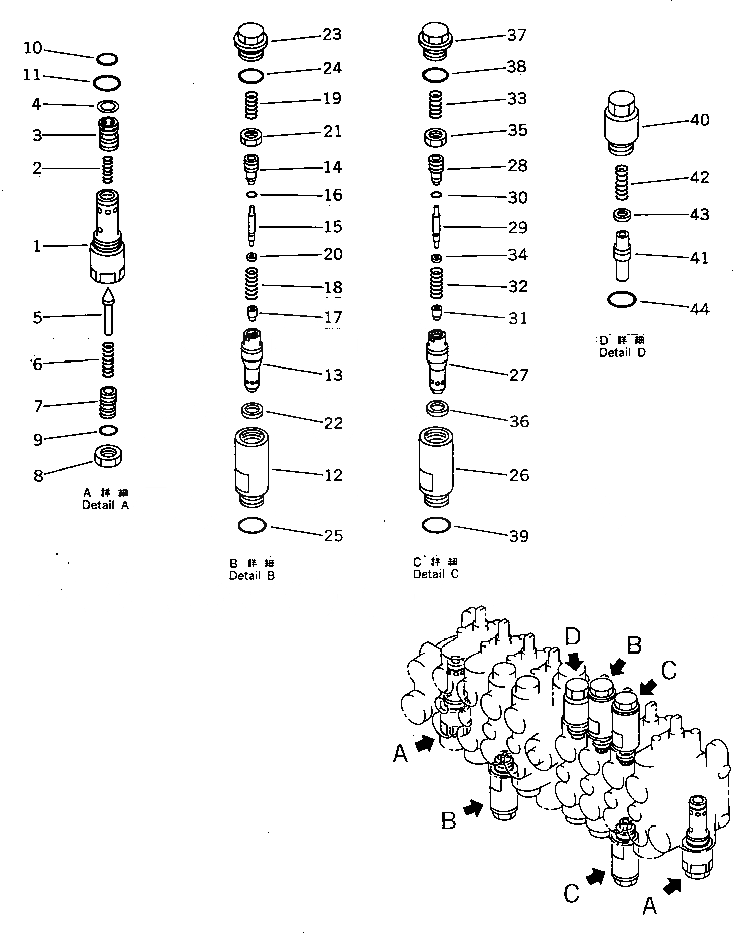

Запчасти Komatsu PC05-7 ГИДРАВЛ УПРАВЛЯЮЩ. КЛАПАН (8-СЕКЦИОНН.) (/) (ВНУТР. ЧАСТИ)(№8-) ГИДРАВЛИКА

|$0

709-38-12602

VALVE ASS'Y

|$2

709-20-52200

VALVE ASS'Y,MAIN RELIEF

1

SLEEVE

2

700-20-51430

SPRING

3

VALVE

4

700-20-51240

RING

5

700-80-61190

POPPET

6

700-20-51350

SPRING

7

700-20-51340

SCREW

8

01583-11408

NUT

9

07000-02011

O-RING

10

700-22-11410

O-RING

11

07002-02434

O-RING

|$14

709-30-62301

VALVE ASS'Y,SUCTION AND RELIEF

12

709-30-62110

SLEEVE

13

VALVE

14

SCREW

15

PISTON

16

O-RING

17

POPPET

18

SPRING

19

700-20-62170

SPRING

20

SEAL

21

NUT

22

SEAL

23

709-30-62150

PLUG

24

07002-12034

O-RING

25

07002-02034

O-RING

|$29

709-30-62501

VALVE ASS'Y,SUCTION AND RELIEF

26

709-30-62110

SLEEVE

27

VALVE

28

SCREW

29

PISTON

30

O-RING

31

POPPET

32

SPRING

33

700-20-62170

SPRING

34

SEAL

35

NUT

36

SEAL

37

709-30-62150

PLUG

38

07002-12034

O-RING

39

07002-02034

O-RING

|$44

709-30-61100

VALVE ASS'Y,SUCTION

40

709-30-61110

SLEEVE

41

VALVE

42

700-20-62170

SPRING

43

SEAL

44

07002-02034

O-RING
