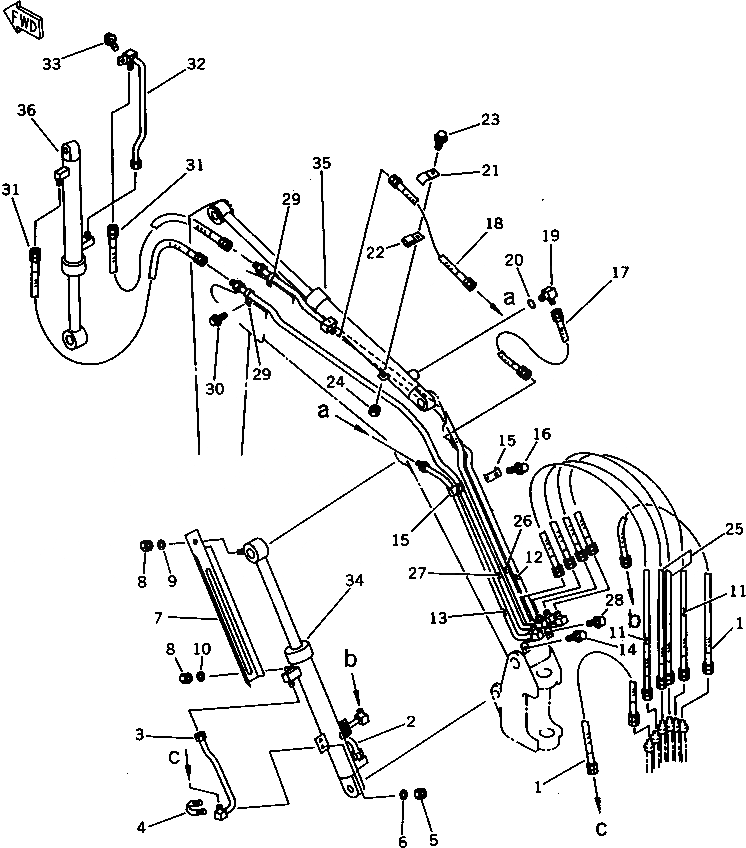

Запчасти Komatsu PC05-6 ГИДРОЛИНИЯ (ДЛЯ УДЛИНН. РУКОЯТИ) РАБОЧЕЕ ОБОРУДОВАНИЕ

G-1

20M-70-X6230

BOOM PIPING GROUP

1

20W-62-13210

HOSE

2

20M-62-63150

TUBE

3

20M-62-63160

TUBE

4

07283-21022

CLIP

5

01598-00608

NUT

6

01643-30623

WASHER

7

20M-62-48711

PLATE

8

01580-10806

NUT

9

01643-30823

WASHER

10

01643-31032

WASHER

G-2

20W-70-X1240

ARM PIPING GROUP

11

20W-62-13220

HOSE

12

20W-62-13131

TUBE

13

20W-62-13141

TUBE

14

01435-20812

BOLT

15

20M-62-33260

CLAMP

16

01435-20812

BOLT

17

20M-62-48611

HOSE

18

20M-62-48621

HOSE

19

07235-10210

ELBOW

20

07002-11423

O-RING

21

20M-62-33290

CLIP

22

20M-62-33280

SEAT

23

01435-20820

BOLT

24

01580-10806

NUT

G-3

20M-943-X620

BUCKET PIPING GROUP,(FOR LONG ARM)

25

20W-62-13220

HOSE

26

20W-62-13111

TUBE

27

20W-62-13121

TUBE

28

01435-20812

BOLT

29

20M-62-33340

CLAMP

30

01435-20812

BOLT

31

20M-943-4210

HOSE

32

20M-62-48571

TUBE

33

01435-20812

BOLT

34

707-00-50660

CYLINDER ASS'Y \,BOOM (SEE FIG.7185)

35

707-00-50670

CYLINDER ASS'Y \,ARM (SEE FIG.7381)

36

707-00-50680

CYLINDER ASS'Y \,BUCKET (SEE FIG.7581)
