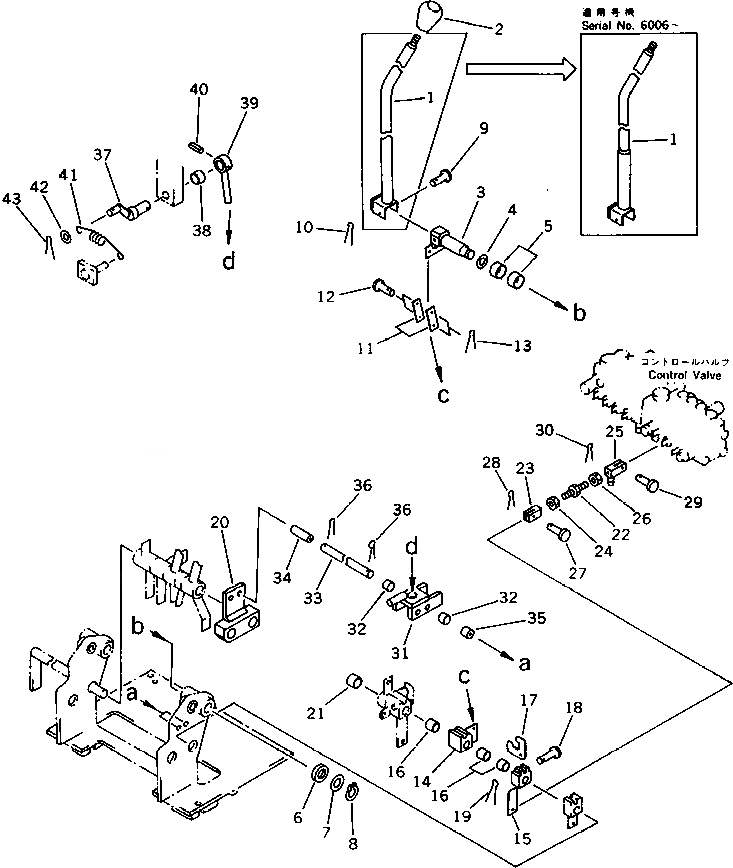

Запчасти Komatsu PC05-6 РЫЧАГ УПРАВЛЕНИЯ ПОВОРОТОМ(№-) СИСТЕМА УПРАВЛЕНИЯ И ОСНОВНАЯ РАМА

1

20W-43-12113

LEVER

1

20W-43-12112

LEVER

2

203-43-41910

KNOB

3

20W-43-00180

LEVER

4

01640-22032

WASHER

5

195-43-43190

BEARING

6

20W-43-12690

SPACER

7

01640-21626

WASHER

8

04064-01610

RING,SNAP

9

20T-43-11310

PIN

10

04050-13022

PIN,COTTER

11

20W-43-00190

YOKE

12

04205-30825

PIN

13

04050-12015

PIN,COTTER

14

20W-43-00130

LEVER

15

20W-43-00140

LEVER

16

195-43-43190

BEARING

17

20S-43-31541

PLATE

18

04205-10625

PIN

19

04050-11612

PIN,COTTER

20

20W-43-12181

BRACKET

21

09350-02015

BUSHING

22

20W-43-11210

ROD

23

20M-43-48271

YOKE

24

01580-10806

NUT

25

20W-43-11220

YOKE,L.H. THREAD

26

01508-40805

NUT,L.H. THREAD

27

04205-30822

PIN

28

04050-12015

PIN,COTTER

29

04205-10520

PIN

30

04052-10530

PIN,SNAP

31

20W-43-12381

BRACKET

32

20S-43-31560

BUSHING

33

20W-43-12411

ROD

34

20W-43-12431

SPACER

35

20W-43-12421

SPACER

36

04050-13020

PIN,COTTER

37

20W-43-12470

LEVER

38

09350-01415

BUSHING

39

20W-43-12480

LEVER

40

04025-00524

PIN,SPRING

41

20W-43-12490

SPRING

42

01641-20608

WASHER

43

04050-11210

PIN,COTTER
