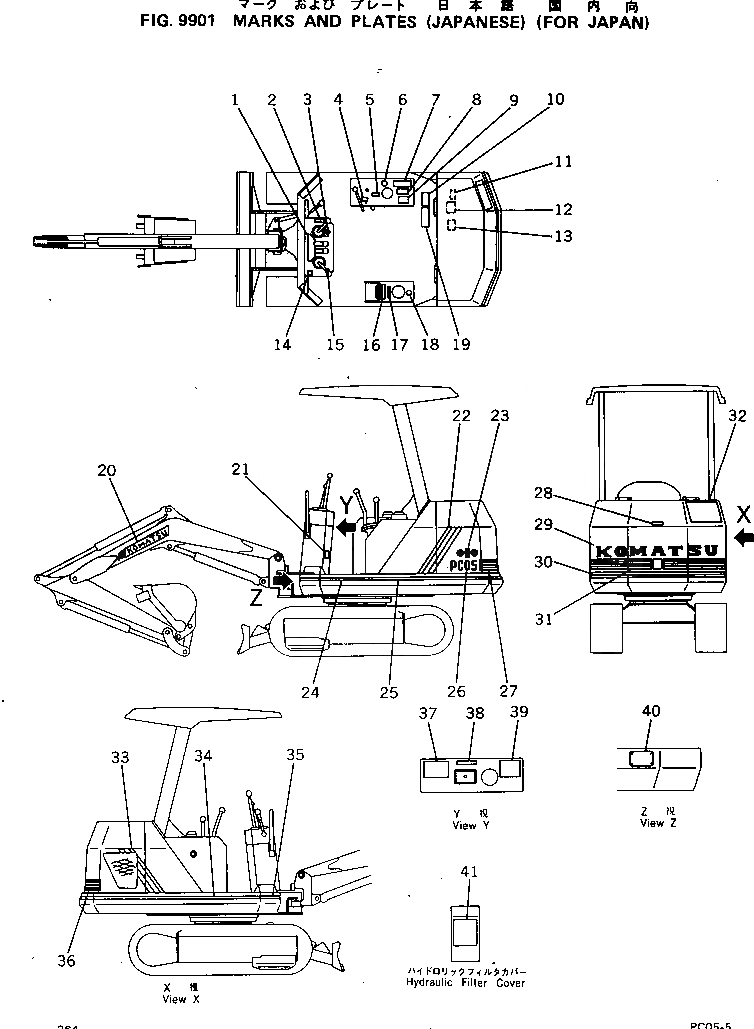

Запчасти Komatsu PC05-5 МАРКИРОВКА (ЯПОН.) МАРКИРОВКА¤ ИНСТРУМЕНТ И РЕМКОМПЛЕКТЫ

1

20M-98-32210

PLATE¤ OPERATING,INSTRUCTION

2

20N-54-16170

PLATE¤ INSTRUCTION,ENGINE CONTROL

3

09683-01060

PLATE¤ OPERATING,STARTING SWITCH

4

09670-00002

PLATE¤ OPERATING,BLADE

5

20T-98-21130

PLATE¤ OPERATING,SWING

6

09669-00003

PLATE¤ CAUTION,HYDRAULIC TANK

7

203-00-21190

PLATE¤ INSTRUCTION,HYDRAULIC OIL

8

203-00-21180

PLATE¤ CAUTION,HYDRAULIC FILTER

9

09653-00100

PLATE¤ SAFETY,HYDRAULIC TANK

10

20M-98-32120

PLATE¤ DATA

11

09668-00100

PLATE¤ SAFETY,RADIATOR CAP

12

09650-01103

PLATE¤ INSTRUCTION,RADIATOR

13

20N-98-21290

PLATE¤ CAUTION,FUEL FILTER

14

20M-98-32260

PLATE¤ OPERATING,LAMP SWITCH

15

09679-02001

PLATE¤ OPERATING,HEAD LAMP

16

09101-00100

PLATE¤ INSTRUCTION,RECOMMENDED FUEL

17

09652-01101

PLATE¤ CAUTION,FUEL TANK

18

09669-00002

PLATE¤ CAUTION,FUEL TANK

19

20R-54-15391

PLATE¤ CAUTION,TRACK LOADING

20

20M-98-32340

PLATE¤ MARK,KOMATSU

21

09685-00002

PLATE¤ OPERATING,SWING LOCK LEVER

22

20M-98-32350

PLATE¤ STRIPE

23

09694-50160

PLATE¤ MARK,SYMBOL

24

20M-98-32390

PLATE¤ STRIPE

25

20M-98-32370

PLATE¤ STRIPE

26

20M-98-32310

PLATE¤ MARK,PC05

27

20M-98-32360

PLATE¤ STRIPE

28

09667-00100

PLATE¤ SAFETY,ENGINE COVER

29

09690-50900

PLATE¤ MARK,KOMATSU

30

20M-98-32380

PLATE¤ STRIPE

31

20M-98-32331

PLATE¤ STRIPE

|31

20M-98-32330

PLATE¤ STRIPE

32

20R-98-21130

PLATE¤ SAFETY,KEEP OUT OF TURNING AREA

33

20M-98-32320

PLATE¤ STRIPE

34

20M-98-32370

PLATE¤ STRIPE

35

20M-98-32390

PLATE¤ STRIPE

36

20M-98-32360

PLATE¤ STRIPE

37

09132-00100

PLATE¤ SAFETY,WARNING

38

09651-00100

PLATE¤ SAFETY,BEFORE OPERATING

39

09173-00100

PLATE¤ SAFETY

40

09601-00835

PLATE¤ NAME,(LIMITED SUPPLY)

|40

04418-13060

SCREW

41

20M-98-32130

CHART¤ OIL
