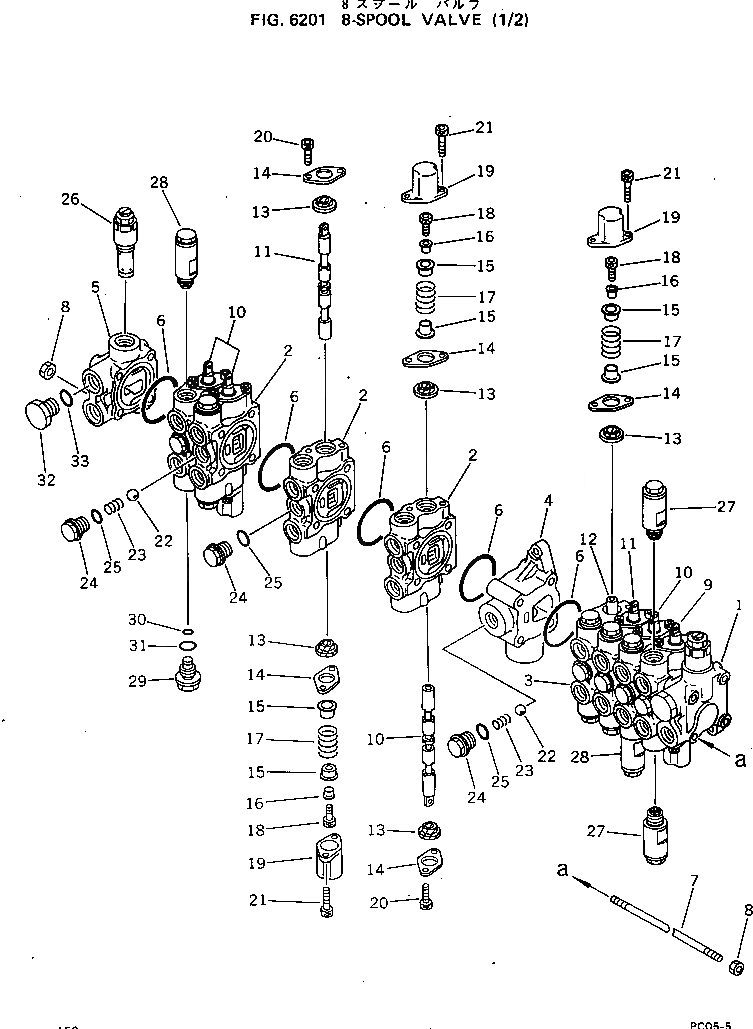

Запчасти Komatsu PC05-5 8-СЕКЦИОНН. УПРАВЛЯЮЩ. КЛАПАН (/) УПРАВЛ-Е РАБОЧИМ ОБОРУДОВАНИЕМ

|1

709-38-11300

VALVE ASS'Y

|1

709-38-11101

VALVE ASS'Y

1

BLOCK

2

BLOCK

3

BLOCK

4

BLOCK

5

BLOCK

6

07000-12055

O-RING

7

709-38-11510

STUD

8

01580-10806

NUT

9

SPOOL,SWING

10

SPOOL

11

SPOOL,TRAVEL

12

SPOOL,BLADE

13

709-32-11530

SEAL

14

709-32-11540

PLATE

15

709-32-11550

RETAINER

16

709-32-11560

COLLAR

17

709-32-11580

SPRING

18

01252-30620

BOLT

19

709-32-11570

COVER

20

01252-30610

BOLT

21

01252-30616

BOLT

22

04260-01270

BALL

23

709-32-11820

SPRING

24

709-32-11810

PLUG

25

07002-11823

O-RING

26

700-22-51001

VALVE ASS'Y,MAIN RELIEF

27

709-30-62800

VALVE ASS'Y,SUCTION AND SAFETY

|27

709-30-62500

VALVE ASS'Y,SUCTION AND SAFETY

28

709-30-62200

VALVE ASS'Y,SUCTION AND SAFETY

29

709-32-11830

PLUG

30

709-32-11840

O-RING

31

07002-02034

O-RING

32

07040-12012

PLUG

33

07002-02034

O-RING
