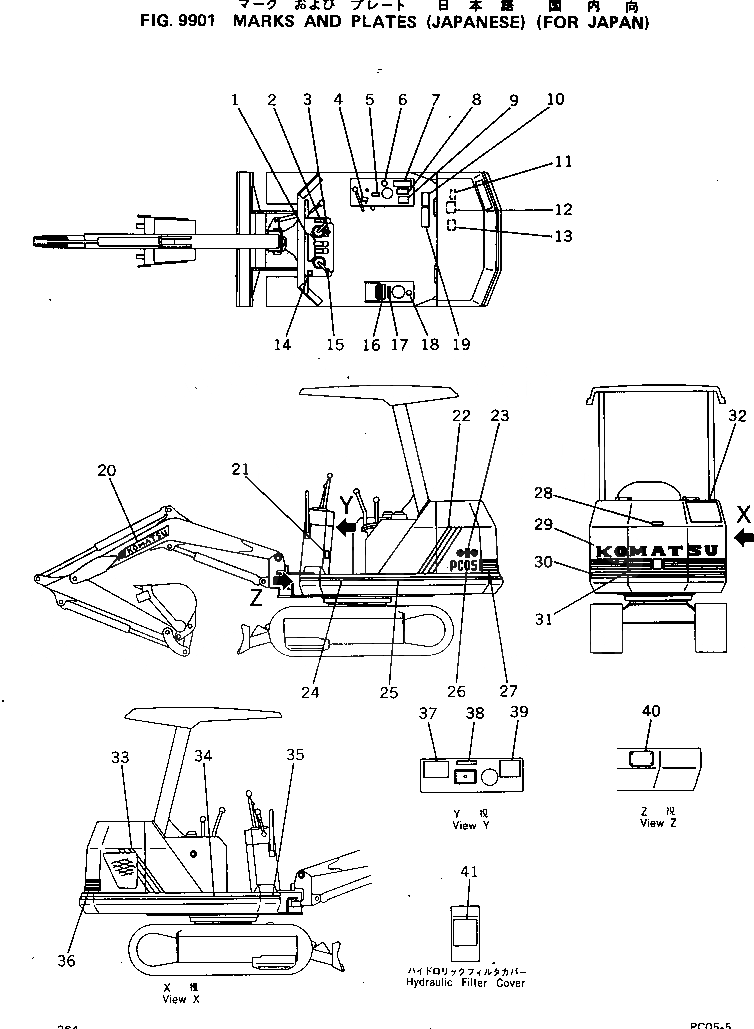

Запчасти Komatsu PC05-5 МАРКИРОВКА (ЯПОН.) МАРКИРОВКА¤ ИНСТРУМЕНТ И РЕМКОМПЛЕКТЫ

1

20M-98-32210

PLATE, OPERATING,INSTRUCTION

2

20N-54-16170

PLATE, INSTRUCTION,ENGINE CONTROL

3

09683-01060

PLATE, OPERATING,STARTING SWITCH

4

09670-00002

PLATE, OPERATING,BLADE

5

20T-98-21130

PLATE, OPERATING,SWING

6

09669-00003

PLATE, CAUTION,HYDRAULIC TANK

7

203-00-21190

PLATE, INSTRUCTION,HYDRAULIC OIL

8

203-00-21180

PLATE, CAUTION,HYDRAULIC FILTER

9

09653-00100

PLATE, SAFETY,HYDRAULIC TANK

10

20M-98-32120

PLATE, DATA

11

09668-00100

PLATE, SAFETY,RADIATOR CAP

12

09650-01103

PLATE, INSTRUCTION,RADIATOR

13

20N-98-21290

PLATE, CAUTION,FUEL FILTER

14

20M-98-32260

PLATE, OPERATING,LAMP SWITCH

15

09679-02001

PLATE, OPERATING,HEAD LAMP

16

09101-00100

PLATE, INSTRUCTION,RECOMMENDED FUEL

17

09652-01101

PLATE, CAUTION,FUEL TANK

18

09669-00002

PLATE, CAUTION,FUEL TANK

19

20R-54-15391

PLATE, CAUTION,TRACK LOADING

20

20M-98-32340

PLATE, MARK,KOMATSU

21

09685-00002

PLATE, OPERATING,SWING LOCK LEVER

22

20M-98-32350

PLATE, STRIPE

23

09694-50160

PLATE, MARK,SYMBOL

24

20M-98-32390

PLATE, STRIPE

25

20M-98-32370

PLATE, STRIPE

26

20M-98-32310

PLATE, MARK,PC05

27

20M-98-32360

PLATE, STRIPE

28

09667-00100

PLATE, SAFETY,ENGINE COVER

29

09690-50900

PLATE, MARK,KOMATSU

30

20M-98-32380

PLATE, STRIPE

31

20M-98-32331

PLATE, STRIPE

31

20M-98-32330

PLATE, STRIPE

32

20R-98-21130

PLATE, SAFETY,KEEP OUT OF TURNING AREA

33

20M-98-32320

PLATE, STRIPE

34

20M-98-32370

PLATE, STRIPE

35

20M-98-32390

PLATE, STRIPE

36

20M-98-32360

PLATE, STRIPE

37

09132-00100

PLATE, SAFETY,WARNING

38

09651-00100

PLATE, SAFETY,BEFORE OPERATING

39

09173-00100

PLATE, SAFETY

40

09601-00835

PLATE, NAME,(LIMITED SUPPLY)

40

04418-13060

SCREW

41

20M-98-32130

CHART, OIL
