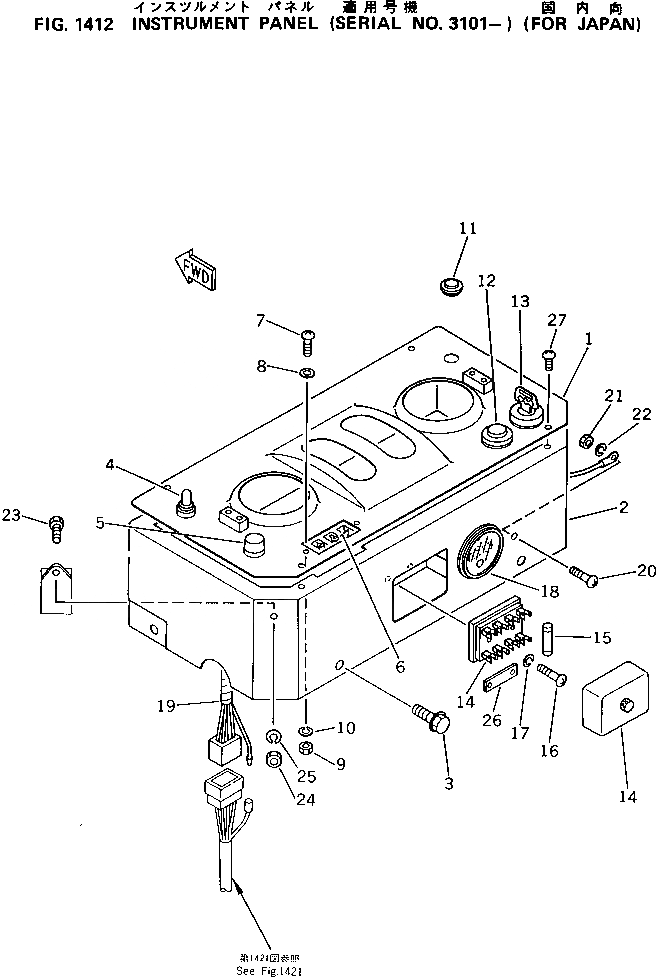

Запчасти Komatsu PC05-5 ПАНЕЛЬ ПРИБОРОВ(№-) КОМПОНЕНТЫ ДВИГАТЕЛЯ И ЭЛЕКТРИКА

1

20M-06-31140

PLATE

2

20M-06-31112

DASHBOARD

3

01435-00816

BOLT

4

20N-06-11120

SWITCH,LAMP

5

08064-10000

SWITCH,HORN

6

20M-06-31120

LAMP,COMBINATION

7

01220-40516

SCREW

8

01641-20508

WASHER

9

01580-10504

NUT

10

01601-20513

WASHER,SPRING

11

20M-06-31150

PLUG

12

20S-06-14130

LAMP,GLOW PLUG

|$12

08111-01230

BULB, 4W

13

08086-10000

SWITCH,STARTING

14

08043-04000

BOX

15

08040-01000

FUSE, 10A

15

08040-02000

FUSE, 20A

16

01220-40520

SCREW

17

01601-00513

WASHER,SPRING

18

08687-21201

METER,SERVICE

19

20M-06-32111

WIRE ASS'Y

20

01220-40516

SCREW

21

01580-10504

NUT

22

01601-20513

WASHER,SPRING

23

01010-50616

BOLT

24

01580-10605

NUT

25

01602-20619

WASHER,SPRING

26

150-06-14290

TERMINAL

27

20N-06-41130

SCREW
