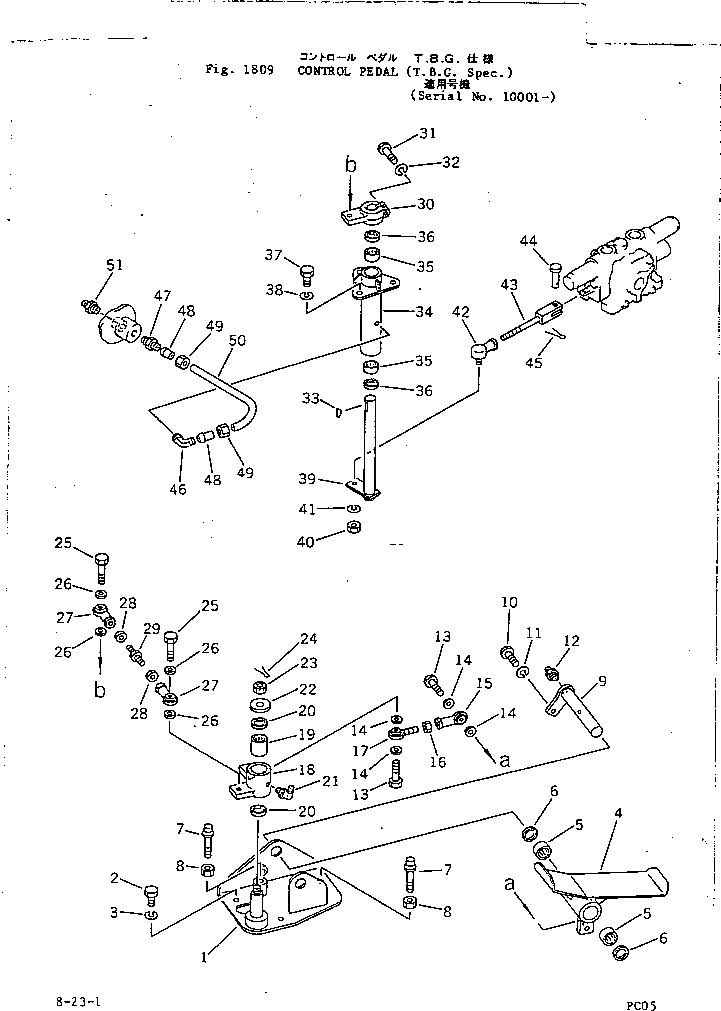

Запчасти Komatsu PC05-1 ПЕДАЛЬ УПРАВЛ-Я (T.B.G. СПЕЦ-Я.)(№-) ОПЦИОННЫЕ КОМПОНЕНТЫ

1

20S-973-1130

BRACKET

2

01010-51020

BOLT

3

01602-21030

WASHER

4

20M-973-0610

PEDAL ASS'Y

4

PEDAL

5

06120-02016

BEARING

6

06122-02004

SEAL

7

20S-967-1250

BUMPER

8

01580-11210

NUT

9

20S-973-1150

SHAFT

10

01010-50825

BOLT

11

01602-20825

WASHER

12

07020-00000

FITTING

13

01010-51035

BOLT

14

04254-01032

SPACER

15

04250-81056

END

16

01582-11008

NUT

17

04252-21061

END

18

20M-973-0620

LEVER ASS'Y

18

LEVER

19

06120-02030

BEARING

20

06122-02004

SEAL

21

07020-00900

FITTING

22

202-54-11281

WASHER

23

01593-11210

NUT

24

04050-13020

PIN

25

01010-51035

BOLT

26

04254-01032

SPACER

27

04250-91056

END

28

01508-21006

NUT

29

20M-973-1420

ROD

30

20M-973-1470

LEVER

31

01010-50830

BOLT

32

01602-20825

WASHER

33

04010-00519

KEY

34

20M-973-0630

SUPPORT ASS'Y

34

SUPPORT

35

06120-01612

BEARING

36

06122-01603

SEAL

37

01010-51020

BOLT

38

01602-21030

WASHER

39

20M-973-1460

SHAFT

40

01580-10806

NUT

41

01602-20825

WASHER

42

04256-00816

JOINT

43

20M-973-1550

ROD

44

04205-10520

PIN

45

04050-11210

PIN

46

20R-46-11150

ELBOW

47

20R-46-11160

CONNECTOR

48

07831-00411

SLEEVE

49

07832-00410

NUT

50

20M-973-1590

TUBE

51

07020-00000

FITTING
