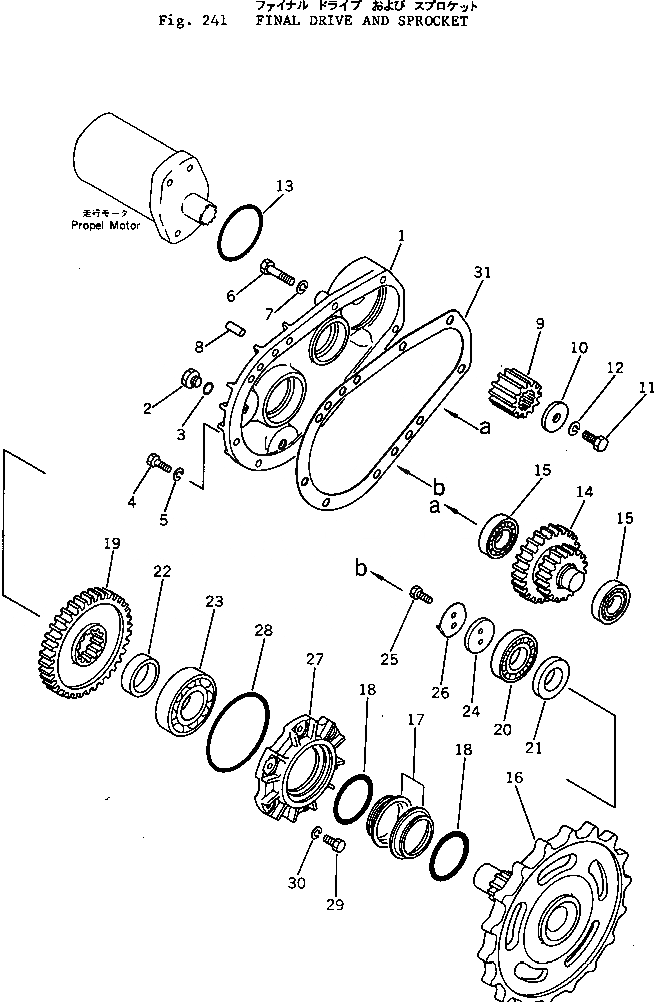

Запчасти Komatsu PC05-1 КОНЕЧНАЯ ПЕРЕДАЧА И ЗВЕЗДОЧКА ХОД И КОНЕЧНАЯ ПЕРЕДАЧА

1

20M-27-11110

COVER,L.H.

1

20M-27-11120

COVER,R.H.

2

07040-11409

PLUG

3

07002-01423

O-RING

4

01010-31025

BOLT

5

01602-01030

WASHER,SPRING

6

01010-31045

BOLT

7

01602-01030

WASHER,SPRING

8

04020-01024

PIN,DOWEL

9

20N-27-12110

GEAR

10

20N-27-12130

HOLDER

11

01010-31025

BOLT

12

01602-01030

WASHER,SPRING

13

07000-02085

O-RING

14

20M-27-13110

SHAFT

15

06044-00206

BEARING,ROLLER

16

20M-27-14120

SPROCKET

|$17

140-30-00040

FLOATING SEAL ASS'Y

17

140-30-00400

SEAL RING ASS'Y

17

RING,SEAL

18

140-30-00410

O-RING ASS'Y

18

O-RING

19

20M-27-14210

GEAR

20

06044-00207

BEARING,ROLLER

21

20M-27-14230

COLLAR

22

20M-27-14220

COLLAR

23

06040-06309

BEARING

24

04080-03506

HOLDER

25

01010-30820

BOLT

26

04081-03510

LOCK

27

20M-27-14310

COVER

28

07000-02115

O-RING

29

01010-30825

BOLT

30

01602-00825

WASHER,SPRING

31

20M-27-11140

GASKET
