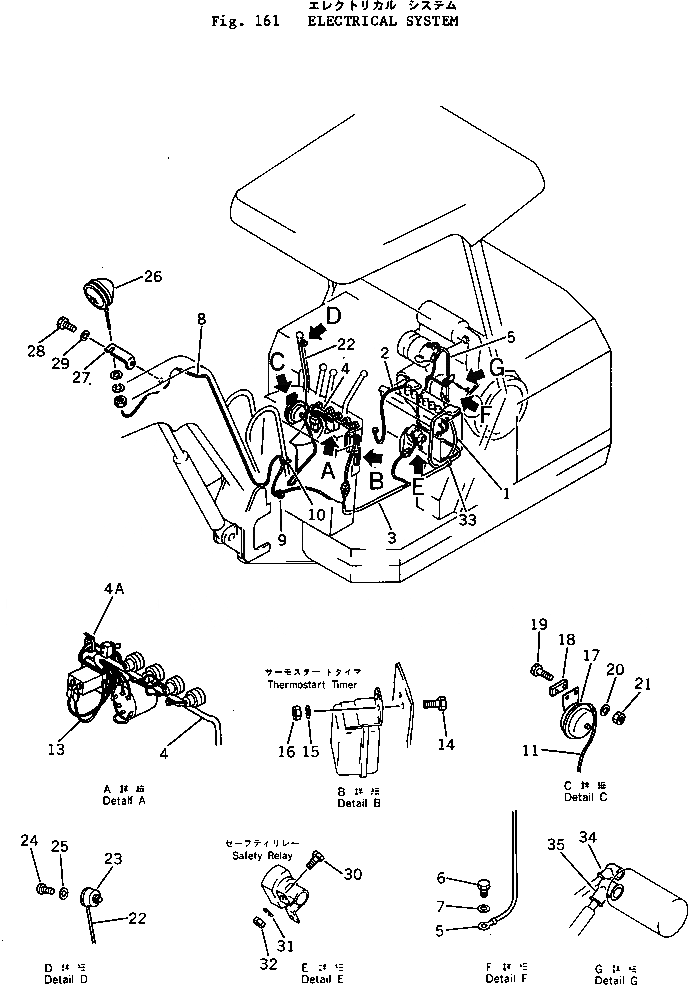

Запчасти Komatsu PC05-1 ЭЛЕКТРИКА КОМПОНЕНТЫ ДВИГАТЕЛЯ И ЭЛЕКТРИКА

1

20M-06-12130

WIRE ASS'Y

1

20M-06-12930

CABLE (OP)

2

20M-06-12140

WIRE

2

20M-06-12940

CABLE (OP)

3

20M-06-12120

WIRE ASS'Y

4

20M-06-12111

WIRE ASS'Y

4

20M-06-12110

WIRE ASS'Y

4A

08034-00536

BAND

5

20M-06-12170

WIRE ASS'Y

6

01010-30812

BOLT

7

01602-00825

WASHER,SPRING

8

20M-06-12150

WIRE ASS'Y

9

08037-01008

GROMMET

10

08034-00519

BAND

11

20M-06-12160

WIRE ASS'Y

13

20M-06-12180

WIRE ASS'Y

14

01010-30616

BOLT

15

01601-00619

WASHER,SPRING

16

01580-00605

NUT

17

08160-41200

HORN

18

20M-06-11250

PLATE

19

01010-30825

BOLT

20

01602-00825

WASHER,SPRING

21

01580-00806

NUT

22

20N-06-22170

WIRE

23

20N-06-11230

SWITCH,HORN

24

01220-40316

SCREW

25

01601-00307

WASHER,SPRING

26

08125-01200

LAMP ASS'Y

26

08107-01260

BULB, 60W

26

08125-00006

LENS

27

20N-06-11222

BRACKET

27

20N-06-11221

BRACKET

28

01010-31225

BOLT

29

01602-01236

WASHER,SPRING

30

01010-30616

BOLT

31

01601-00619

WASHER,SPRING

32

01580-00605

NUT

33

08034-00519

BAND

34

08038-00519

CAP

35

08038-04030

CAP
