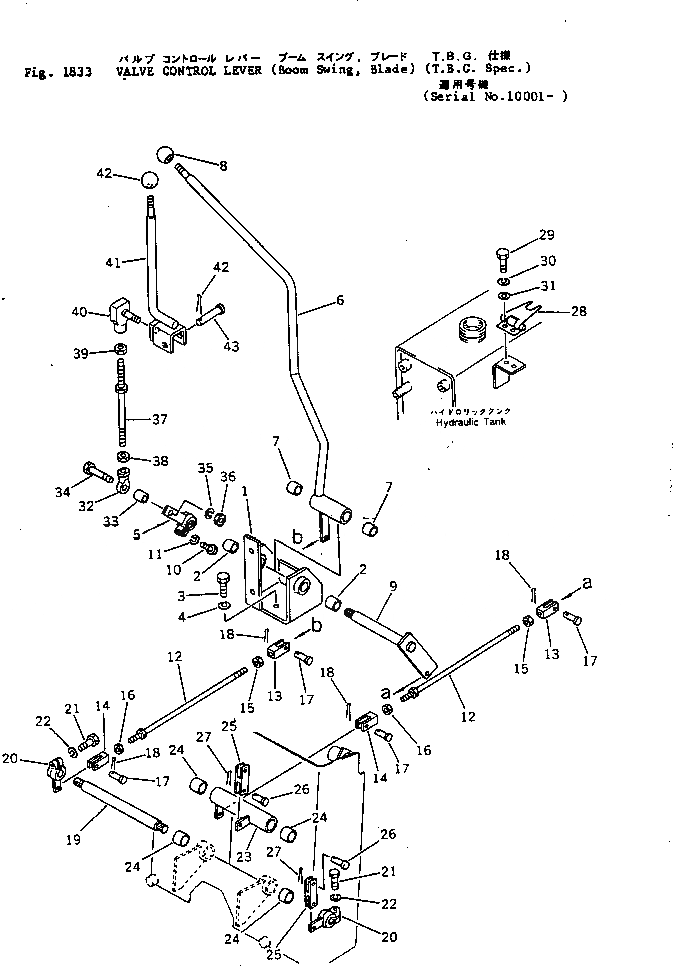

Запчасти Komatsu PC05-1 КЛАПАН РЫЧАГ УПРАВЛ-Я (СТРЕЛА¤РУКОЯТЬ¤ОТВАЛ) (T.B.G. СПЕЦ-Я.)(№-) ОПЦИОННЫЕ КОМПОНЕНТЫ

|$0

20M-43-10080

BRACKET ASS'Y

1

BRACKET

2

20T-43-11280

BUSHING

3

01010-31025

BOLT

4

01602-01030

WASHER,SPRING

5

20M-43-19570

LEVER

|$6

20M-43-00090

LEVER ASS'Y

6

LEVER

7

20T-43-11280

BUSHING

8

20R-43-11280

KNOB

9

20M-43-19560

SHAFT

10

01010-30830

BOLT

11

01602-00825

WASHER,SPRING

12

04248-30833

ROD

13

04210-20832

YOKE

14

04220-20832

YOKE

15

01580-10806

NUT

16

01508-20805

NUT,L.H. THREAD

17

04205-10822

PIN

18

04050-12012

PIN,COTTER

19

20M-43-11540

SHAFT

20

20M-43-11530

LEVER

21

01010-30830

BOLT

22

01602-00825

WASHER,SPRING

|$24

20M-43-00100

LEVER ASS'Y

23

LEVER

24

20T-43-11280

BUSHING

25

20M-43-11310

YOKE

26

04205-10820

PIN

27

04050-12012

PIN,COTTER

28

20T-43-11270

HINGE

29

01010-30616

BOLT

30

01602-00619

WASHER,SPRING

31

01640-00610

WASHER

32

04250-61056

END

33

20M-43-19590

SPACER

34

01010-51050

BOLT

35

01602-21030

WASHER,SPRING

36

01580-11008

NUT

37

20M-43-19580

ROD

38

01508-21006

NUT,L.H. THREAD

39

01580-11008

NUT

40

20T-43-11320

JOINT

41

20M-43-19550

LEVER

42

20R-43-11290

KNOB
