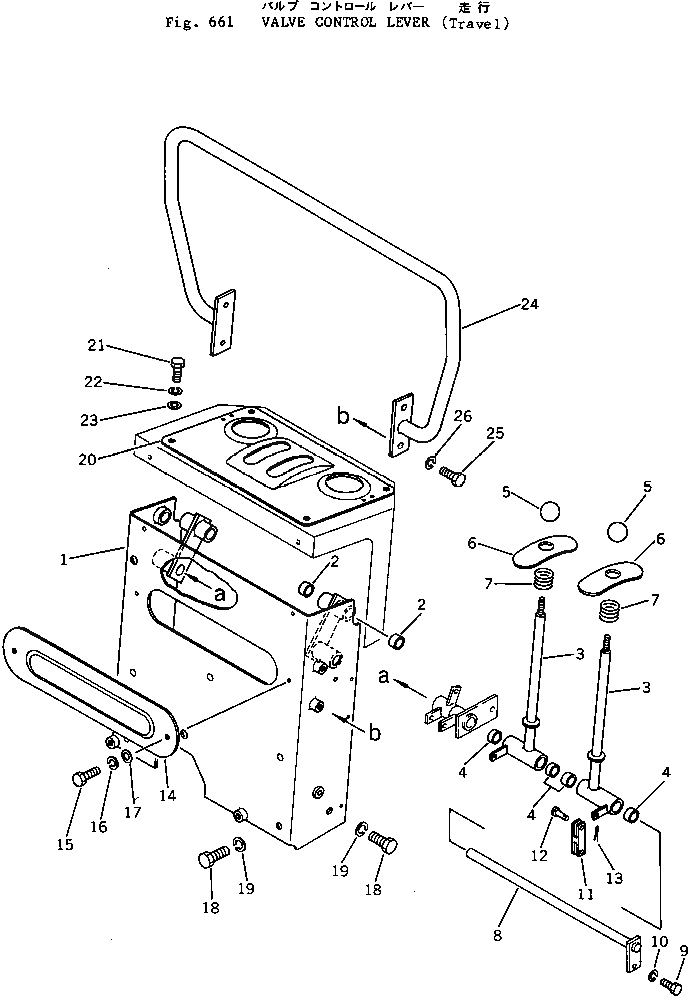

Запчасти Komatsu PC05-1 КЛАПАН РЫЧАГ УПРАВЛ-Я (ХОД) ГИДРАВЛИКА

|1

20M-43-00010

BRACKET ASS'Y

1

BRACKET

2

20T-43-11280

BUSHING

|3

20M-43-00040

LEVER ASS'Y,L.H.

|3

20M-43-00050

LEVER ASS'Y,R.H.

3

LEVER,L.H.

|3

LEVER,R.H.

4

20T-43-11280

BUSHING

5

20R-43-11280

KNOB

6

20T-43-11260

COVER

7

09340-10130

SPRING

8

20M-43-11120

SHAFT

9

01010-31020

BOLT

10

01602-01030

WASHER,SPRING

11

20M-43-11310

YOKE

12

04205-10820

PIN

13

04050-12012

PIN,COTTER

14

20N-43-23140

COVER

15

01010-30820

BOLT

16

01602-00825

WASHER,SPRING

17

01640-01016

WASHER

18

01010-31025

BOLT

19

01602-01030

WASHER,SPRING

20

20N-43-23130

COVER

21

01010-30820

BOLT

22

01602-00825

WASHER,SPRING

23

01643-00823

WASHER

24

20M-43-11411

STAY

|24

20M-43-11410

STAY

25

01010-31020

BOLT

26

01602-01030

WASHER,SPRING
