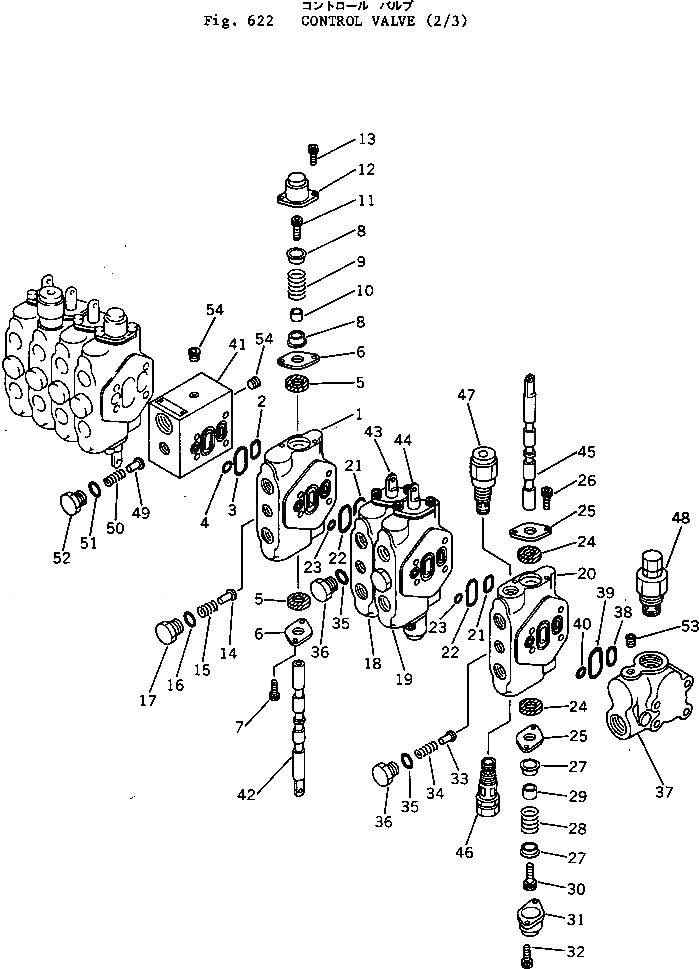

Запчасти Komatsu PC05-1 УПРАВЛЯЮЩ. КЛАПАН (/) ГИДРАВЛИКА
№
Артикул
Название
Примечание
Количество
|1
20M-60-13000
VALVE ASS'Y
|1
20M-60-13700
VALVE BODY ASS'Y
1
BODY,VALVE
2
07000-12020
O-RING
3
20M-60-13130
O-RING
4
07000-12010
O-RING
5
20M-60-13320
SEAL,OIL
6
20M-60-13330
PLATE
7
01252-40610
BOLT
8
20M-60-13340
RETAINER
9
20M-60-13350
SPRING
10
20M-60-13360
SPACER
11
01252-40820
BOLT
12
20M-60-13370
COVER
13
01252-40620
BOLT
14
20M-60-13150
VALVE
15
20M-60-13160
SPRING
16
07000-12014
O-RING
17
20M-60-13380
PLUG
|18
20M-60-13800
VALVE BODY ASS'Y,(A)
|18
20M-60-13300
VALVE BODY ASS'Y,(B)
|18
20M-60-13400
VALVE BODY ASS'Y,(C)
18
BODY,VALVE¤ (A)
19
BODY,VALVE¤ (B)
20
BODY,VALVE¤ (C)
21
07000-12020
O-RING
22
20M-60-13130
O-RING
23
07000-12010
O-RING
24
20M-60-13320
SEAL,OIL
25
20M-60-13330
PLATE
26
01252-40610
BOLT
27
20M-60-13340
RETAINER
28
20M-60-13350
SPRING
29
20M-60-13360
SPACER
30
01252-40820
BOLT
31
20M-60-13370
COVER
32
01252-40620
BOLT
33
20M-60-13150
VALVE
34
20M-60-13160
SPRING
35
07000-12014
O-RING
36
20M-60-13380
PLUG
37
20M-60-13120
BODY
38
07000-12020
O-RING
39
20M-60-13130
O-RING
40
07000-12010
O-RING
41
20M-60-13140
BODY
42
SPOOL,BOOM SWING
43
SPOOL,R.H. TRAVEL
44
SPOOL,BUCKET
45
SPOOL,BOOM
46
20M-60-13850
VALVE ASS'Y
47
20M-60-13930
VALVE ASS'Y
48
20M-60-13200
VALVE ASS'Y
49
20M-60-13150
VALVE
50
20M-60-13160
SPRING
51
07000-12014
O-RING
52
20M-60-13380
PLUG
53
20M-60-13180
PLUG
54
20M-60-13170
PLUG
Выбрано товаров: 59
