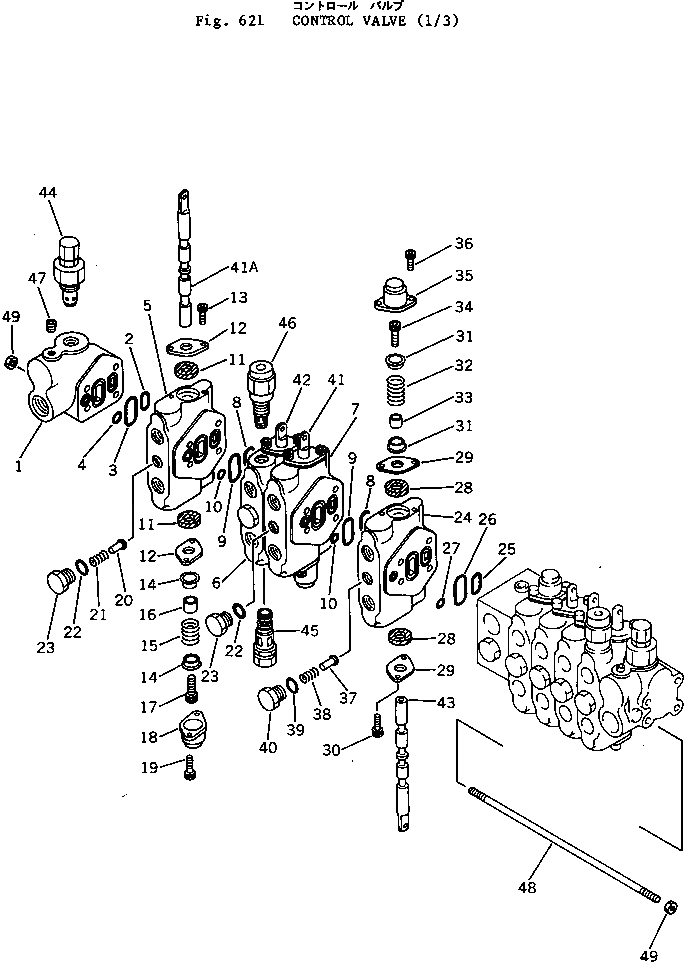

Запчасти Komatsu PC05-1 УПРАВЛЯЮЩ. КЛАПАН (/) ГИДРАВЛИКА
№
Артикул
Название
Примечание
Количество
|1
20M-60-13000
VALVE ASS'Y
1
20M-60-13110
BODY
2
07000-12020
O-RING
3
20M-60-13130
O-RING
4
07000-12010
O-RING
|5
20M-60-13300
VALVE BODY ASS'Y,(A)
|5
20M-60-13400
VALVE BODY ASS'Y,(B)
|5
20M-60-13500
VALVE BODY ASS'Y,(C)
5
BODY,VALVE¤ (A)
6
BODY,VALVE¤ (B)
7
BODY,VALVE¤ (C)
8
07000-12020
O-RING
9
20M-60-13130
O-RING
10
07000-12010
O-RING
11
20M-60-13320
SEAL,OIL
12
20M-60-13330
PLATE
13
01252-40610
BOLT
14
20M-60-13340
RETAINER
15
20M-60-13350
SPRING
16
20M-60-13360
SPACER
17
01252-40820
BOLT
18
20M-60-13370
COVER
19
01252-40620
BOLT
20
20M-60-13150
VALVE
21
20M-60-13160
SPRING
22
07000-12014
O-RING
23
20M-60-13380
PLUG
|24
20M-60-13600
VALVE BODY ASS'Y
24
BODY,VALVE
25
07000-12020
O-RING
26
20M-60-13130
O-RING
27
07000-11005
O-RING
28
20M-60-13320
SEAL,OIL
29
20M-60-13330
PLATE
30
01252-40610
BOLT
31
20M-60-13340
RETAINER
32
20M-60-13350
SPRING
33
20M-60-13360
SPACER
34
01252-40820
BOLT
35
20M-60-13370
COVER
36
01252-40620
BOLT
37
20M-60-13150
VALVE
38
20M-60-13160
SPRING
39
07000-12014
O-RING
40
20M-60-13380
PLUG
41
SPOOL,L.H. TRAVEL
41A
SPOOL,SWING
42
SPOOL,ARM
43
SPOOL,BLADE
44
20M-60-13200
VALVE ASS'Y
45
20M-60-13900
VALVE ASS'Y
46
20M-60-13930
VALVE ASS'Y
47
20M-60-13180
PLUG
48
20M-60-13190
BOLT,STUD
49
01580-00806
NUT
Выбрано товаров: 55
