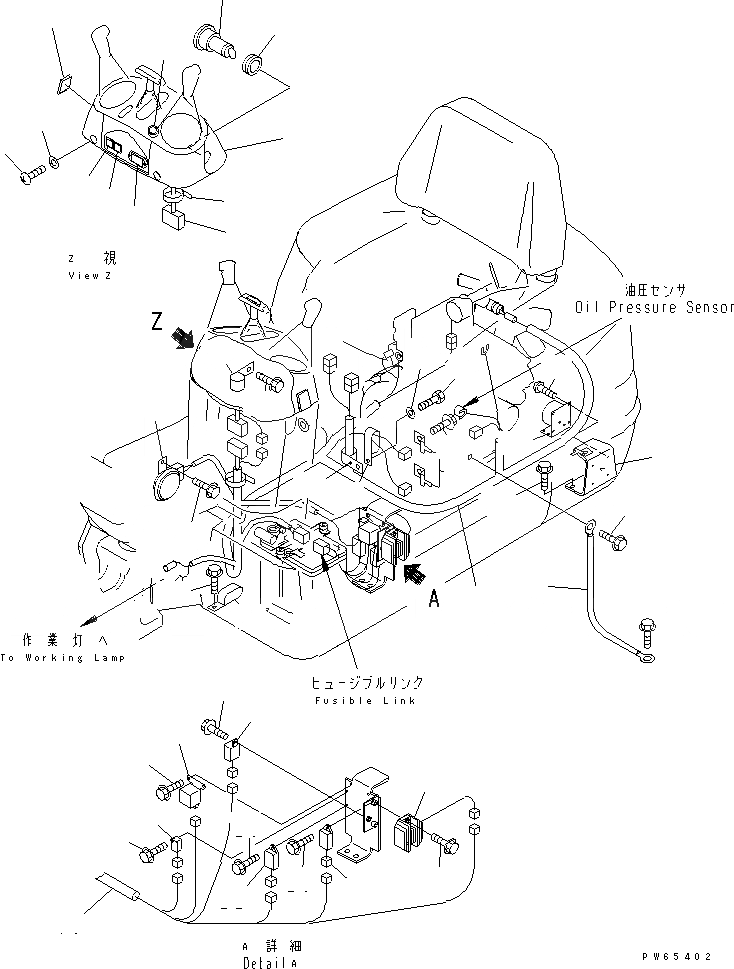

Запчасти Komatsu PC03-2 ЭЛЕКТР. (ПАНЕЛЬ И ОСНОВН. Э/ПРОВОДКА) (ДЛЯ DIESEL СПЕЦ-Я.) ЭЛЕКТРИКА

|$1

21S-06-2A100

PANEL ASS'Y

|$2

21S-06-22102

PANEL ASS'Y

1

21S-946-2720

COVER

2

21S-06-22112

WIRING HARNESS

3

21S-06-21120

SERVICE METER

4

08086-10000

SWITCH,STARTING

5

21S-06-28221

PLATE

6

FF7840-06421

LAMP,OIL PRESSURE

6

08111-01230

BULB, 4W

6

FF7840-06521

LENS

7

FF7830-06130

LAMP,WATER TEMPERATURE

7

08111-01230

BULB, 4W

7

FF7840-06541

LENS

8

20A-06-17260

LAMP

9

08034-20519

BAND

10

21S-43-21910

PLATE

11

21U-43-25210

SCREW

12

21U-43-25220

WASHER

13

21S-06-22241

WIRING HARNESS

14

21U-06-21350

CABLE

15

01435-01016

BOLT

16

20A-06-11411

HORN

17

01435-00812

BOLT

18

YM119650-77910

RELAY,STOP

19

01435-00610

BOLT

20

YM121522-77721

INDICATOR,CHARGE

21

01435-00625

BOLT

22

YM119632-77920

TIMER,SOLENOID

23

01435-00625

BOLT

24

YM128300-77920

TIMER,SOLENOID

25

01435-00616

BOLT

26

01435-00610

BOLT

27

YM119640-77711

LIMITER,CURRENT

28

01435-00625

BOLT

29

YM119247-77100

RELAY,SAFETY

30

21S-06-2A110

ALARM

31

01023-10412

SCREW

32

04434-51908

CLIP

33

01435-00816

BOLT

34

21S-06-2A130

BRACKET

35

01435-00816

BOLT

36

04435-51408

CLIP

37

01435-00816

BOLT

38

08053-01510

CLIP

39

01435-00816

BOLT

40

08036-02514

CLIP

41

04435-51408

CLIP

42

01010-80816

BOLT

43

01643-30832

WASHER
