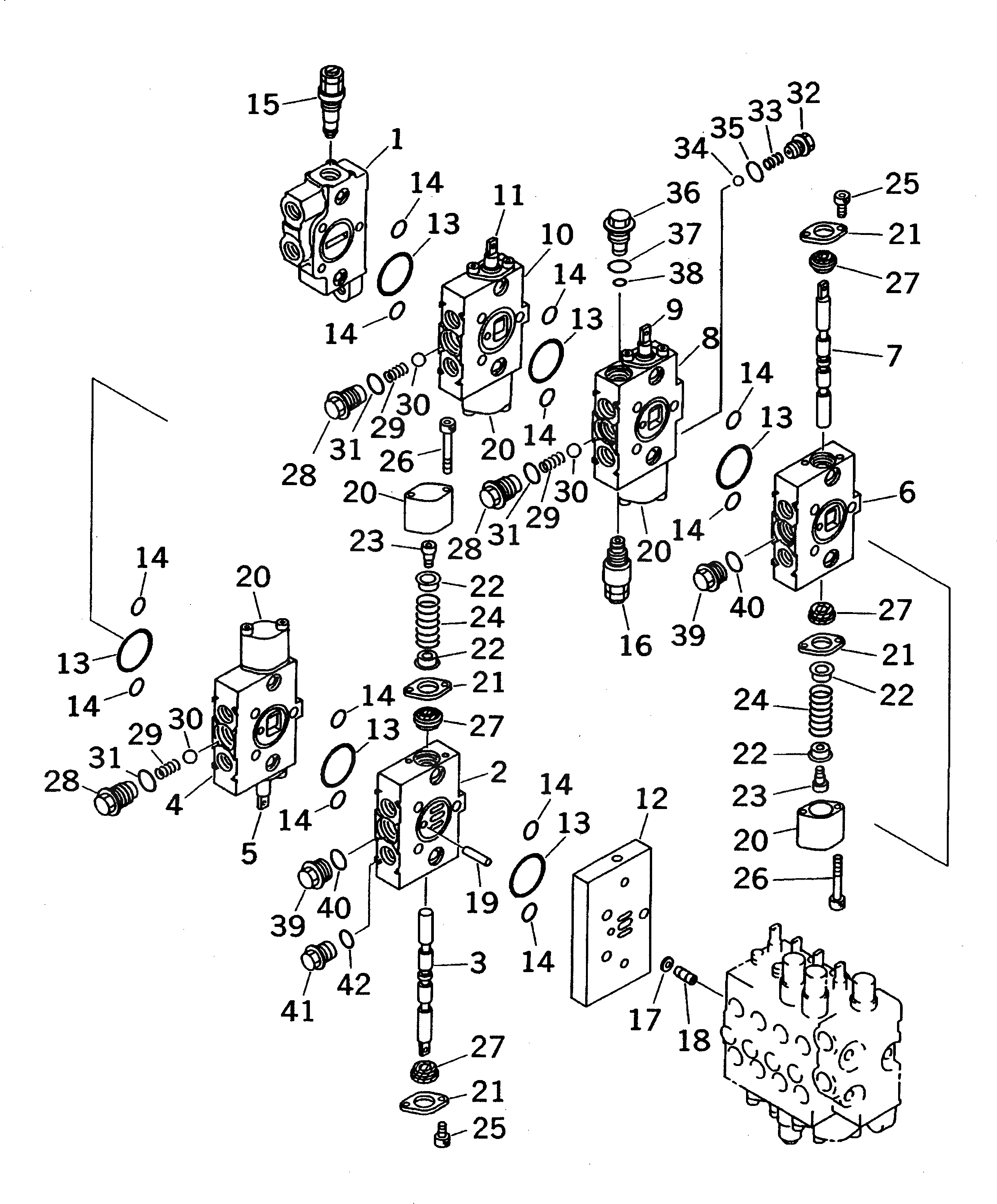

Запчасти Komatsu PC03-2 ГИДРАВЛ УПРАВЛЯЮЩ. КЛАПАН (9-СЕКЦИОНН.) (/) (ВНУТР. ЧАСТИ) ОСНОВН. КОМПОНЕНТЫ И РЕМКОМПЛЕКТЫ

|$0

724-00-14000

VALVE ASS'Y

1

724-00-31310

BLOCK

|$3

724-00-33950

SPOOL KIT,SERVICE

2

BLOCK,SERVICE

3

SPOOL,SERVICE

|$6

724-00-33860

SPOOL KIT,BOOM SWING

4

BLOCK,BOOM SWING

5

SPOOL,BOOM SWING

|$9

724-00-33970

SPOOL KIT,R.H. TRAVEL

6

BLOCK,R.H. TRAVEL

7

SPOOL,R.H. TRAVEL

|$12

724-00-33880

SPOOL KIT,BOOM

8

BLOCK,BOOM

9

SPOOL,BOOM

|$15

724-00-33990

SPOOL KIT,BUCKET

10

BLOCK,BUCKET

11

SPOOL,BUCKET

12

724-00-31230

BLOCK,CENTER

13

724-00-81510

O-RING

14

07000-12011

O-RING

15

724-00-55000

VALVE ASS'Y,MAIN RELIEF

16

724-00-61000

VALVE ASS'Y,SAFETY

17

724-00-31210

PLATE

18

724-00-31260

PISTON

19

724-00-31270

TUBE

20

724-00-31710

COVER

21

724-00-31720

PLATE

22

724-00-31730

RETAINER

23

724-00-31740

BOLT

24

724-00-31750

SPRING

25

01252-30510

BOLT

26

01252-30540

BOLT

27

724-00-31760

SEAL,OIL

28

724-00-81110

SLEEVE

29

724-00-81120

SPRING

30

724-00-81130

BALL

31

07002-11623

O-RING

32

724-00-81210

SLEEVE

33

724-00-81220

SPRING

34

724-00-81230

BALL

35

07002-11223

O-RING

36

724-00-81320

PLUG

37

07002-11423

O-RING

38

724-00-51150

O-RING

39

724-00-81330

PLUG

40

07002-11623

O-RING

41

724-00-81340

PLUG

42

07002-11423

O-RING
