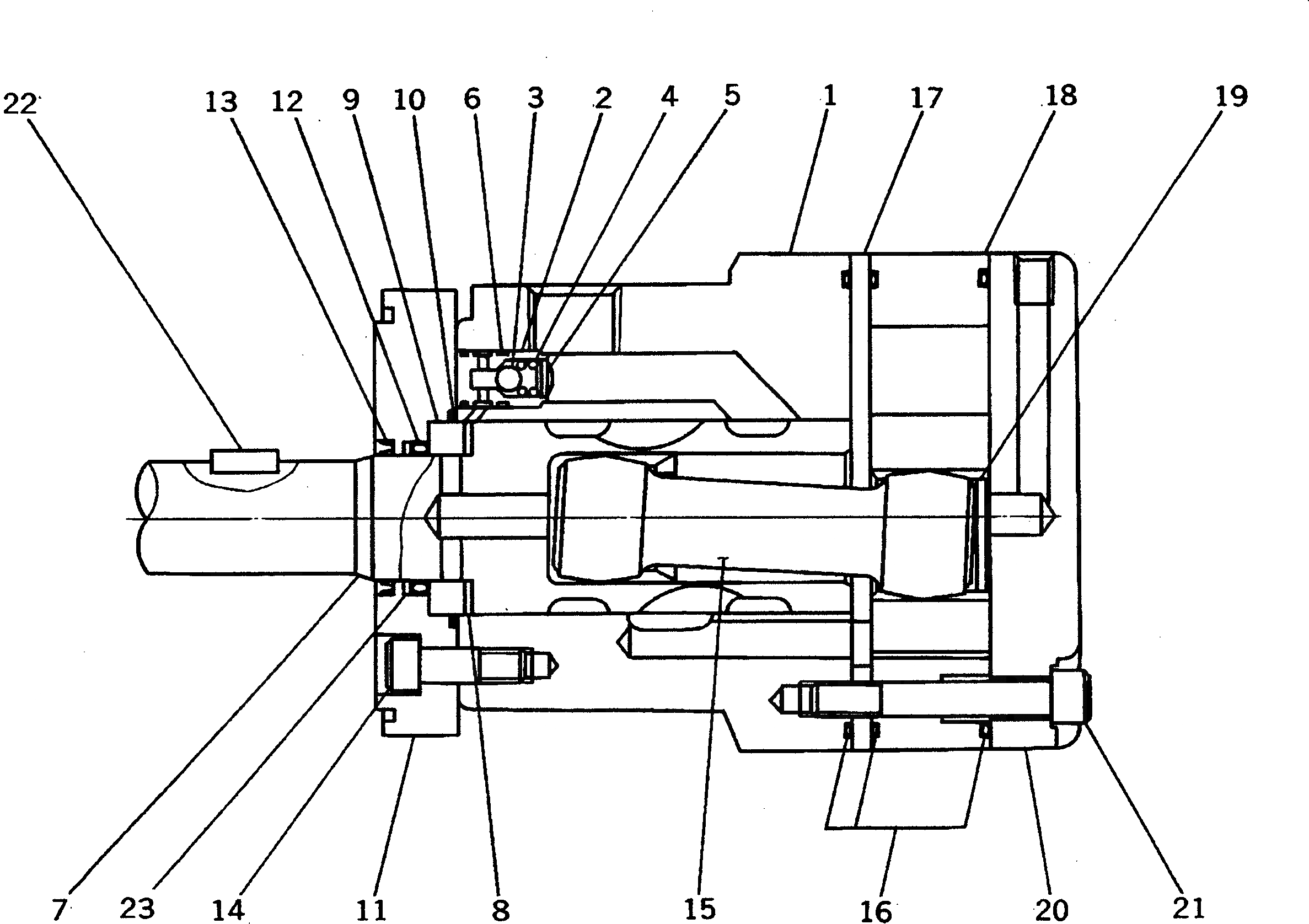

Запчасти Komatsu PC03-1 МОТОР ПОВОРОТА УПРАВЛ-Е РАБОЧИМ ОБОРУДОВАНИЕМ

|$0

21S-60-13101

MOTOR ASS'Y

|$1

21S-60-13100

MOTOR ASS'Y

1

21S-60-13120

HOUSING

|$3

21S-60-13210

BALL CHECK SUB A.

2

BODY

3

BALL

4

SPRING

5

WASHER

6

21S-60-13350

O-RING

7

21S-60-13160

SHAFT,OUTPUT

8

21S-60-13240

BEARING,THRUST

9

21S-60-13230

BEARING,THRUST

10

21S-60-13330

O-RING

11

21S-60-13111

FLANGE

11

21S-60-13110

FLANGE

12

21S-60-13311

SEAL,OIL

13

21S-60-13320

SEAL,DUST

14

21S-60-13250

SCREW

15

21S-60-13171

DRIVE

15

21S-60-13170

DRIVE

16

21S-60-13340

O-RING

17

21S-60-13130

SPACER

18

21S-60-13141

GEROLER ASS'Y

18

21S-60-13140

GEROLER ASS'Y

19

21S-60-13180

SPACER

20

21S-60-13150

END,CAP

21

21S-60-13190

SCREW

22

21S-60-13220

KEY

23

21S-60-13360

WASHER
